MJD date range from 57369.725787 to 57385.767442
386 readings over 16.04 days, tau0 = 3600 seconds

End-to-end phase change:	-115.000 ns
Phase change per day:	-7.169 ns
Peak-to-peak phase range:	172.000 ns

Time difference (REF-DUT, last sample):

5.008 ms

Frequency offset (linear, R2=0.834):	-9.91E-14
Frequency offset (endpoints):	-8.30E-14

Drift (linear, R2=0.000):

-1.15E-14/day

(-8.05E-14/week, -3.45E-13/month, -4.20E-12/year)

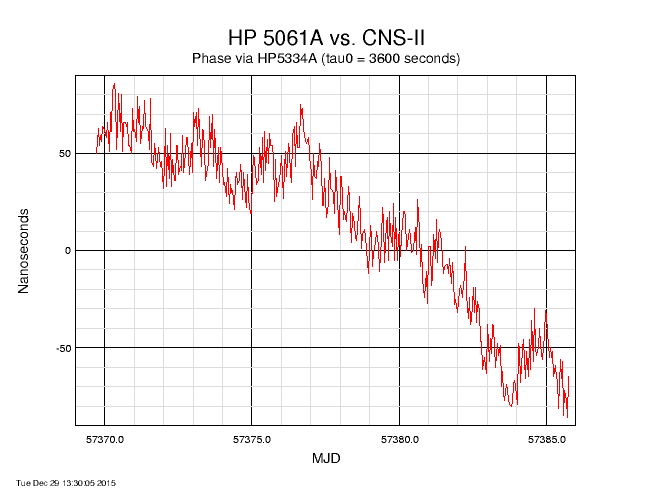

Raw Phase

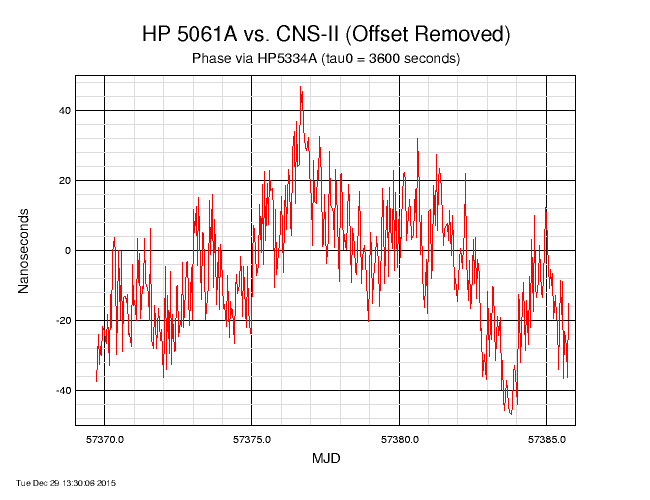

Offset Removed

Peak-to-peak noise:

93.633 ns

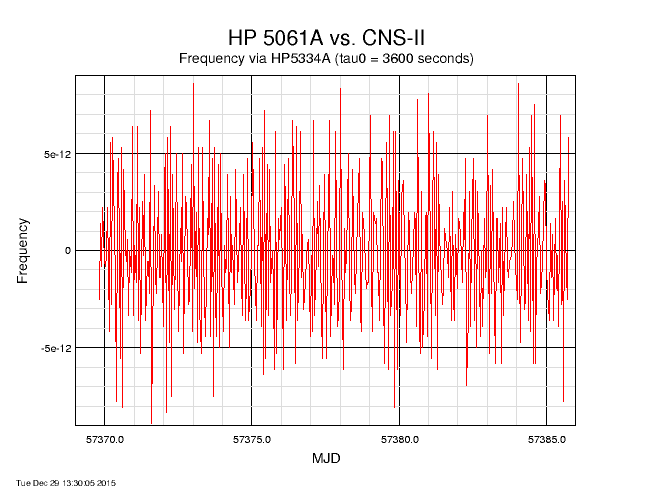

Frequency

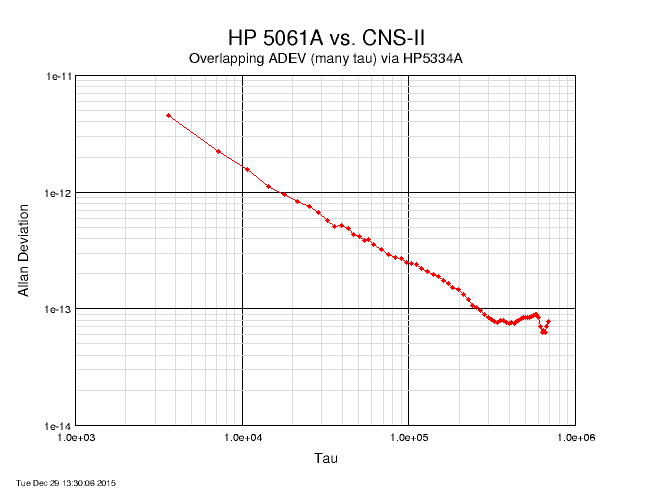

Overlapping Allan Deviation

Tau	ADEV		Tau	ADEV
3.60E+03	4.569E-12		5.76E+04	3.898E-13
7.20E+03	2.214E-12		1.15E+05	2.286E-13
1.44E+04	1.113E-12		2.30E+05	1.209E-13
2.88E+04	6.702E-13		4.61E+05	8.019E-14
