I've been messing around with my 5061A trying to trim for minimum offset
against GPS.  It's been a bit frustrating as small movements of the C
field control haven't seemed to have the expected effect.  Now, I have
another piece of the puzzle.

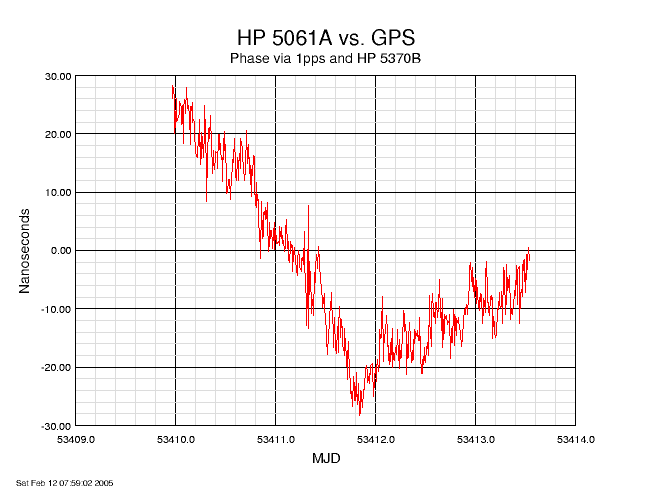

I've attached a phase plot of the current data run.  This is against a
UT+ receiver with 600 second averaging.  Note the downward slope of
about -2x10e-13 that abruptly reverses direction.  The change happened
almost two days into the run, and there was nothing going on in the lab
at the time to account for it.  The standard as well as the measurement
equipment are on a UPS, and the standard has been running continuously
for at least a few weeks now.

However, this morning when I had a chance to take a look at things, I
noticed that the continuous operation light was off on the 5061A.
Hitting the logic reset button restored the light.  Beam current and 2nd
harmonic meter readings were normal.  The unit was set in LTC (60 second
time constant) mode, which I know makes it more vulnerable to losing lock.

What's interesting is that the new positive offset is closer to what I
would have expected after the small C field adjustment (adding about one
minor division) I made about an hour before the run started.  During the
first part of the run, the offset had actually become more negative than
it was prior to the adjustment, which had me scratching my head.

So, for the experts here:

1.  Should I expect to lose lock every now and again if I insist on
running in LTC mode?

2.  Could a small C field change have effects 48 hours after it was made?

3.  Does this sudden change of offset indicate a problem in the 5061A?



-------------- next part --------------
A non-text attachment was scrubbed...
Name: hp5061a-phase.png
Type: image/png
Size: 10313 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20050212/de6b7c68/attachment-0004.png
