[time-nuts] Looking for 468-DC GOES receiver info

[Tom Van Baak]

> If I could find some information on the details of the Manchester-coded
> 100bps stream, I could read it myself with an oscilloscope from the
> 486-DC test points I've already found and get a very low-level answer
> on the time code status.

Kevin,

I can scan a couple of pages or ship you a spare
copy of the whole 468-DC manual. Meanwhile,

Manchester code:
http://en.wikipedia.org/wiki/Manchester_code

Here are some NIST papers on GOES time format
and receiver design:

  Satellite controlled digital clock system
  http://www.leapsecond.com/patent/US4014166.pdf

  Satellite controlled clock
  http://www.leapsecond.com/patent/US4287597.pdf

  NBS Time Via Satellites
  http://www.boulder.nist.gov/timefreq/general/pdf/420.pdf

  NBS Time to the Western Hemisphere by Satellite
  http://www.boulder.nist.gov/timefreq/general/pdf/473.pdf

  Time From NBS By Satellite
  http://www.boulder.nist.gov/timefreq/general/pdf/488.pdf

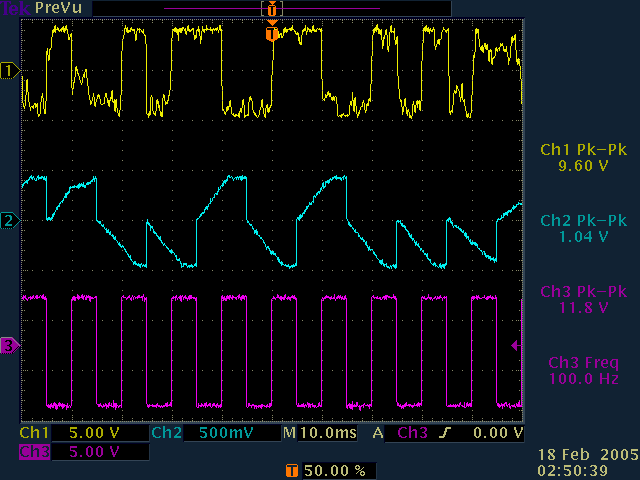

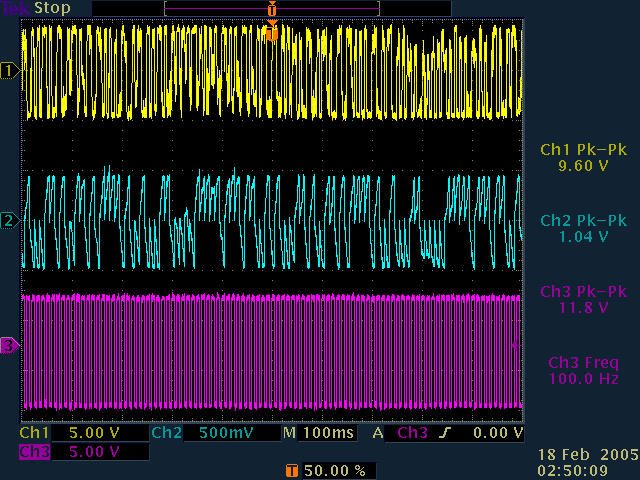

Attached are two traces of three 468-DC test points
of interest:
ch1 = TP3 (raw Manchester code from the satellite)
ch2 = TP4 (output of data integrator)
ch3 = TP5 (100 Hz sample clock).

/tvb
-------------- next part --------------
A non-text attachment was scrubbed...
Name: tds17650.gif
Type: image/tiff
Size: 17815 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20050218/57e47a7c/attachment-0008.tiff
-------------- next part --------------
A non-text attachment was scrubbed...
Name: tds17649.gif
Type: image/tiff
Size: 27825 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20050218/57e47a7c/attachment-0009.tiff
