[time-nuts] RE: phase locking Rb to GPS

Alberto di Bene dibene at usa.net
Sun Oct 23 12:19:27 EDT 2005

Bill Hawkins wrote:
> Speaking as a process control engineer, it sounds like
> too much gain. You can verify that it is the oven by
> warming up the device somehow. That should change the
> period of oscillation. If it is still 7 minutes then
> reduce the gain somehow.
I can't reduce the gain of the temperature controlling
circuitry, as it is sealed inside the oven. The only thing
I have control of, is the EFC voltage applied to the OCXO.

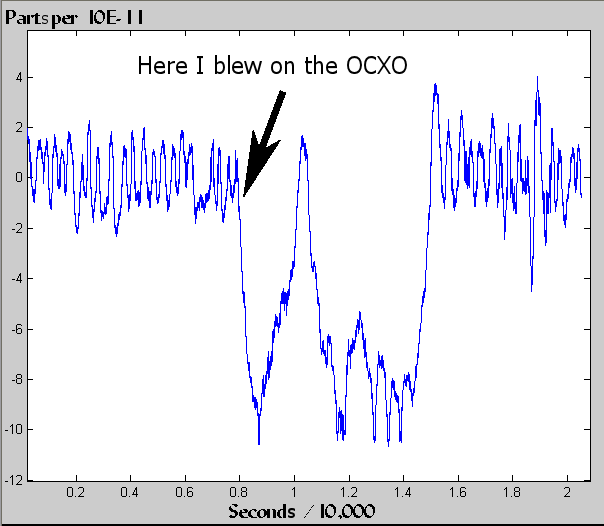

I made an experiment when testing the GPSDO, I blew on the
ovened oscillator assembly, and measured the EFC changes,
translated into frequency changes. The plot is in the attached
file. The long recovery time is caused by the long time
constant of the EFC controller.

73  Alberto  I2PHD
-------------- next part --------------
A non-text attachment was scrubbed...
Name: blow.gif
Type: image/gif
Size: 15362 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20051023/4148b3ce/attachment-0004.gif
