[time-nuts] another Ebay mixup, 5370

John Miles jmiles at pop.net
Sat Jun 9 20:38:06 EDT 2007

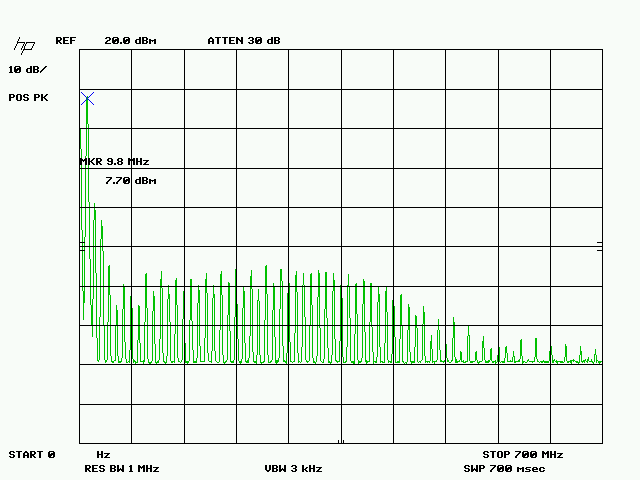

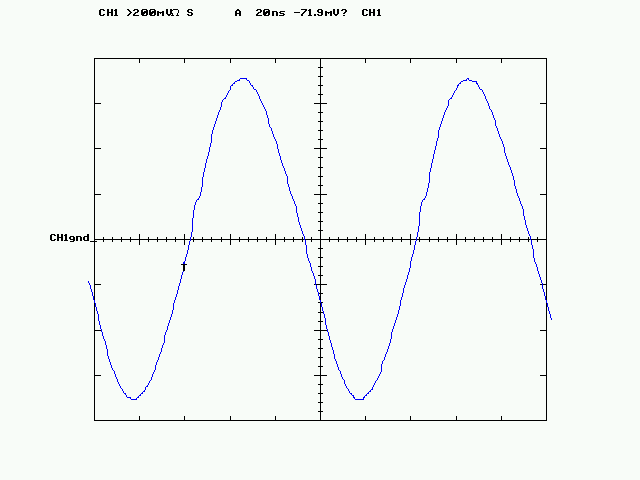

Pretty similar results here, taken from the 5370B's rear-panel output while
running on the internal 10811B (attached).  Indicated jitter with this setup
is about the same as it was on the ext ref via the 5087A (10-12 ps).

I've seen this counter return self-test jitter results in the 15-25 ps range
before.  Not sure why it's in such a good mood today.

At any rate, it doesn't appear that the wave shape is a problem... but of
course, you will usually get better jitter readings with a fast edge than
with a sine wave.

-- john, KE5FX

> -----Original Message-----
> From: time-nuts-bounces at febo.com [mailto:time-nuts-bounces at febo.com]On
> Behalf Of SAIDJACK at aol.com
> Sent: Saturday, June 09, 2007 4:44 PM
> To: time-nuts at febo.com
> Subject: Re: [time-nuts] another Ebay mixup, 5370
>
>
>
> In a message dated 6/9/2007 14:56:04 Pacific Daylight Time,
> bruce.griffiths at xtra.co.nz writes:
>
> >Can  you send an image of the rear panel sinewave output  waveform?
>
> >Bruce
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 5370fd.gif
Type: image/gif
Size: 12328 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20070609/6e576044/attachment-0002.gif
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 5370td.gif
Type: image/gif
Size: 5822 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20070609/6e576044/attachment-0003.gif
