Brian Kirby wrote:
> I bought an HP 5087A distribution amplifier off of ebay.  "The unit is
> in good working condition".  Funny the power supply is putting out 120
> hertz square waves.....which makes all the outputs look like they are
> oscillating garbage....disconnecting the power supply from the load does
> not change the situation.  I subbed a test power supply and the
> amplifiers work fine.
>
> Does anybody have the schematic to just the power supply and could I
> bother you to scan it and send to me, or a link to get it, or the manual ?
>
> The power supply looks very simple, but the schematic sure makes life
> easier !
>
> Thanks in advance - Brian N4FMN - kirbybq at bellsouth.net
>
>
> _______________________________________________
> time-nuts mailing list
> time-nuts at febo.com
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
>
>
Brian

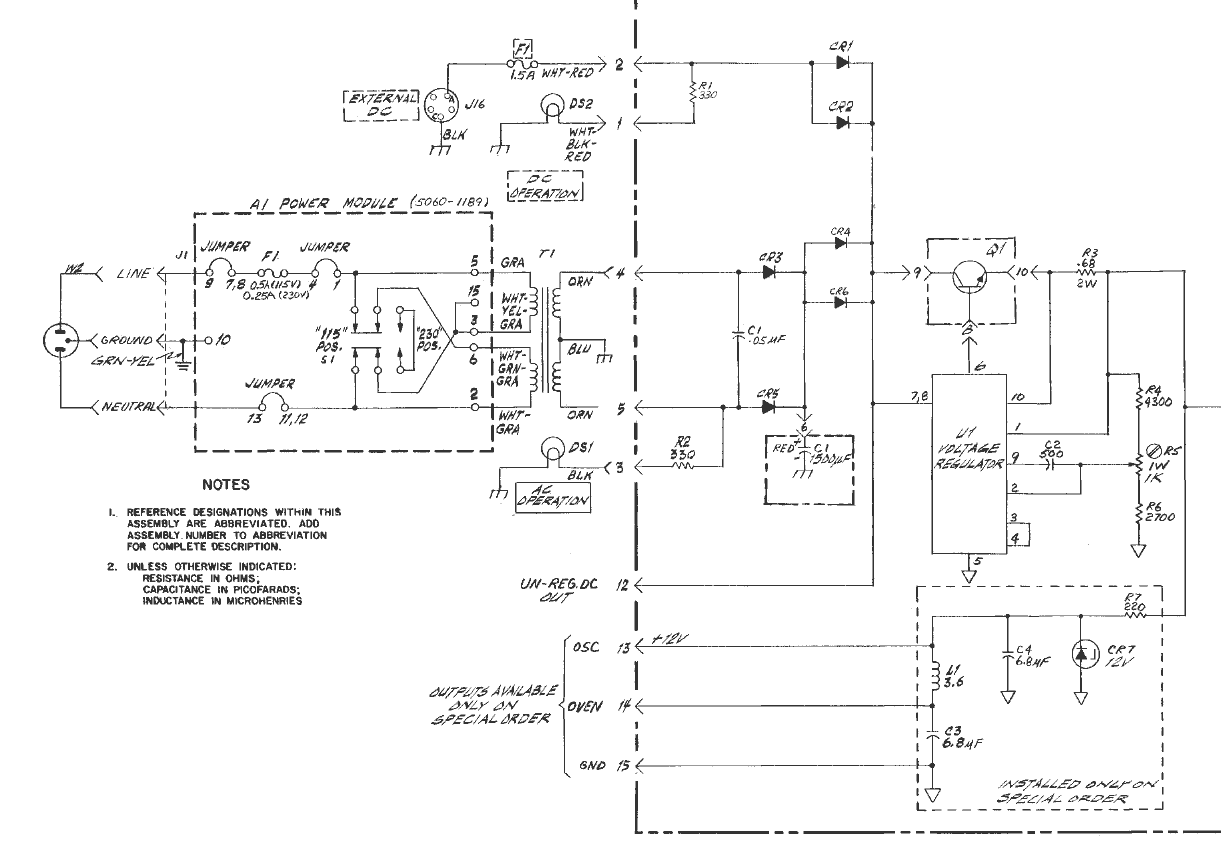

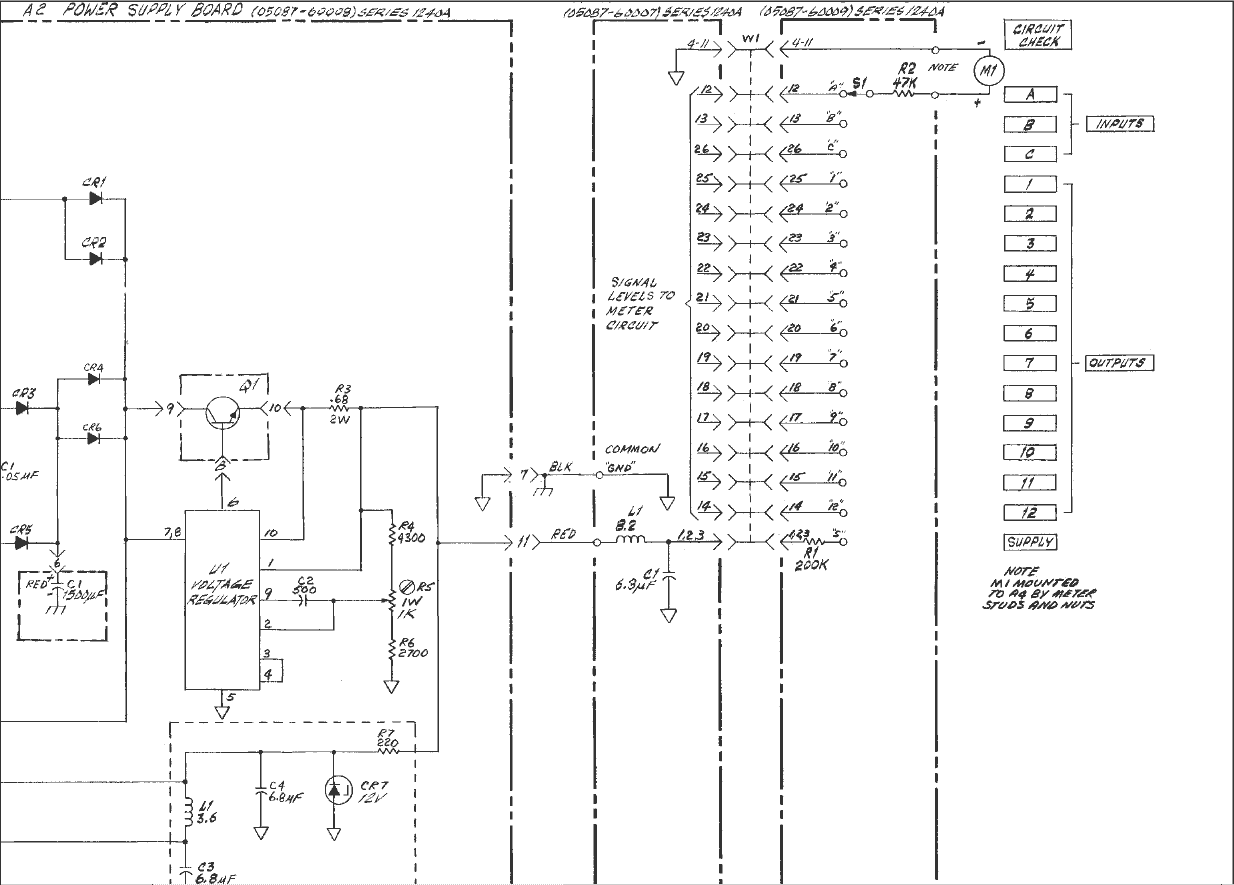

Attached are 2 screen shots of the relevant page.

Bruce
