[time-nuts] Designing and building an OCXO and GPSDO

SAIDJACK at aol.com SAIDJACK at aol.com
Tue Aug 12 23:16:48 EDT 2008


Hi Bruce,

do you have any phase noise/stability measurements for these  circuits?

thanks,
Said


In a message dated 8/12/2008 18:53:38 Pacific Daylight Time,
bruce.griffiths at xtra.co.nz writes:

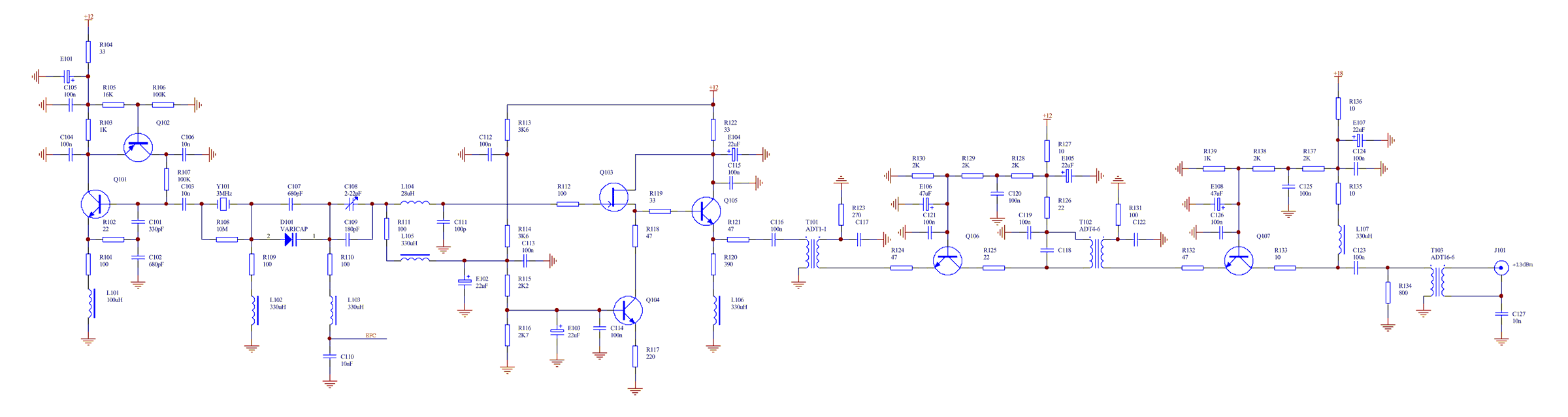

Attached  schematic is for a variant of the Wenzel circuit using a JFET
high input  impedance buffer to drive a cascaded pair of CB stages.

L104 is  approximately resonant with C111 at 3MHz so that either an RF
choke and  series resistor or a relative;y low value resistor (10K) can
be used to  set the JFET gate voltage.
The impedance of C104 at 3MHz is about 530 ohms  so a 1mA crystal current
will result in about 530 mV rms across  C104.
An additional inductor can be used in series with the crystal to
resonate out the input capacitance of the oscillator stage if required,
this will allow a greater tuning range to be achieved.

Inductor  L104  needs to have a reasonably high Q ( > 100 @ 3MHz) to
avoid  degrading the loaded  Q significantly.

The drain current of JFET  Q103 is determined by the collector current of
Q104 this minimises the  effect of JFET parameter variations from part to
part on its drain  current.

The RF voltage at the source of Q103 can be amplified (a  widebandwidth
opamp could be used) and used to drive a detector diode for  AGC purposes.
Alternatively a common base stage connected to the other end  of the
secondary of T101 could be used an RF current source to drive a  full
wave diode detector with a low load resistance.
This will largely  eliminate the effect of the detector diode forward
voltage drops on the  detected output. This detector dc load current can
than be compared with a  reference current and the dc collector current
of Q101 adjusted to  regulate the crystal current.

Bruce
