[time-nuts] Sub Pico Second Phase logger

Bruce Griffiths bruce.griffiths at xtra.co.nz
Fri Dec 12 01:36:47 UTC 2008


Joe

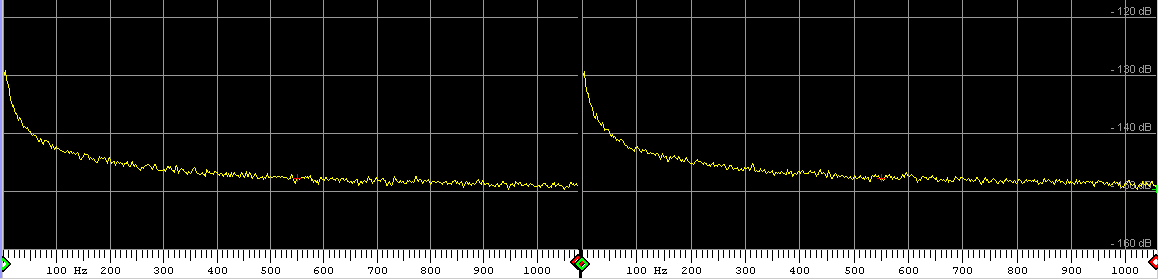

Attached is noise spectrum (1kHz and below) of AP192 with nothing
connected to inputs.
Sampling rate 96KSPS.
Frequency bin equivalent noise bandwidth ~ 3Hz.
Noise has similar spectrum to flicker noise with a noise corner of
around 300Hz or so.


Bruce
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AP192_Below1kHz_NoInput.gif
Type: image/gif
Size: 11731 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20081212/5f7c3649/attachment-0001.gif
