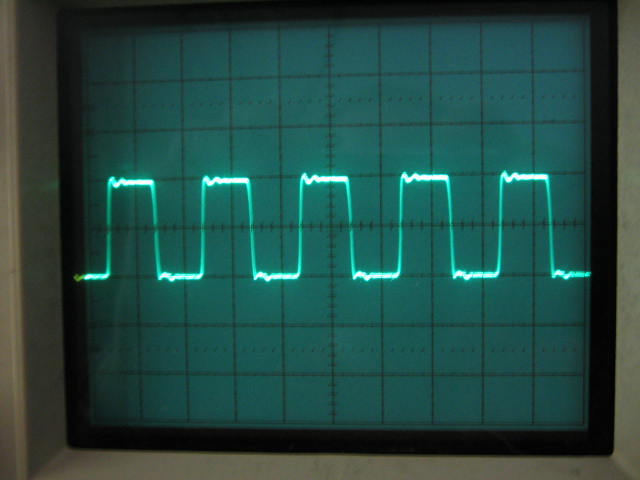

My scope was set for 2 volts / div, terminated right
in to the scope.  Arguably not the best way to view
it...

Here is another photo, terminated with 50 Ohms and
amplitude set at 1 volt per division.  I guess it
looks a lot cleaner.  Not sure what the impedance is
supposed to be.

I always assumed frequency references should be sine
waves.  If that is not the case, I guess I can use
this for a reference for other equipment?  And if a
square wave is just fine, could I use a clock-block to
divide the 15 MHz of the XO down to 10 MHz?  If not,
what other alternatives are there to get 10 MHz out
the the 15 MHz?  I have seen discussion on the
reflector about this, I will go back and search for
any circuits someone might have posted.

Sorry to unload so many questions!

Thanks! --Jamie


--- Rob Kimberley <rk at timing-consultants.com> wrote:

> James,
>
> Not played with one of these units, but looks like a
> very useable 10 MHz
> square wave. What impedance are you terminating
> with? What is the amplitude
> scale on the 'scope?
>
> Rob Kimberley
>
> -----Original Message-----
> From: time-nuts-bounces at febo.com
> [mailto:time-nuts-bounces at febo.com] On
> Behalf Of James R. Gorr
> Sent: 19 January 2008 19:15
> To: time-nuts at febo.com
> Subject: [time-nuts] RFTG-m-RB
>
>
> Attached is a photo of the output of my RFTG-m-RB J2
> (10 MHz REF OUT).  Is
> this the expected shape?  J4 (15 MHz OUT) is a nice
> clean sine wave.  Can I
> safely use this 10 MHz signal as a reference for
> other gear that takes a 10
> MHz input?
>
> Thanks in advance!
>
> Jamie
>
>
>
>
