[time-nuts] Stable Z38XX
Ulrich Bangert
df6jb at ulrich-bangert.de
Sun Jul 12 13:03:28 UTC 2009
Gents,
I just uploaded a new version of Z38XX with the following improvements:
1) 115200 Baud setting bug removed
2) Should now recognize JACKSON LABS products and use partial/changed SCPI
command set on those (Need feedback on that!)
3) Possible bug in status screen interpretation removed

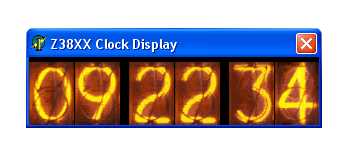

4) Can display a nice nixie-clock like window like the one attached (only on
devices that supply an answer to PTIM:TCOD? command i.e. the real Z-devices,
no Fury/FireFly/GCRU)
5) Can compute a linear fit to the EFC value and compute a relative OCXO
frequency drift from that due to a user supplied value that constitutes the
assumed relation between EFC and frequency.
Enjoy
Ulrich Bangert
> -----Ursprungliche Nachricht-----
> Von: time-nuts-bounces at febo.com
> [mailto:time-nuts-bounces at febo.com] Im Auftrag von Scott Mace
> Gesendet: Samstag, 11. Juli 2009 19:30
> An: Discussion of precise time and frequency measurement
> Betreff: Re: [time-nuts] Stable Z38XX
>
>
> Ulrich, I'm trying to run this against a Fury and z38xx
> doesn't seem to
> keep the 115200 baud setting, it just changes back to 57600.
>
> Scott
>
>
> On 07/11/2009 02:47 AM, Ulrich Bangert wrote:
> > Hi Said,
> >
> > not necessary to supply you with a list: Just start the
> software and
> > open the debug window. You will see all serial
> communication action.
> > With no device connected just the commands will appeear one
> below the
> > other. You can use the "window hold" option of the debug window to
> > defeat the scrolling.
> >
> > There is also a second option: If you supply ME a list of commands
> > that your devices understand then I can detect the device
> type by the
> > answer to *IDN? and ask the devices just what they understand and
> > leave everything else out. That is the stategy that the software
> > already uses to cover the Z3801/5/15 and the GCRU.
> >
> > Best regards
> > Ulrich
> >
> >> -----Ursprungliche Nachricht-----
> >> Von: time-nuts-bounces at febo.com
> [mailto:time-nuts-bounces at febo.com]
> >> Im Auftrag von SAIDJACK at aol.com
> >> Gesendet: Freitag, 10. Juli 2009 20:23
> >> An: time-nuts at febo.com
> >> Betreff: Re: [time-nuts] Stable Z38XX
> >>
> >>
> >> Hi Ulrich,
> >>
> >> any chance you could send me a list of commands you
> utility uses as a
> >> minimum command-set so I can cross-check against our
> >> Fury/FireFly GPSDO's?
> >>
> >> There are lots of folks on this list that have our units, and it
> >> would be great if we could get it up and running for our
> interface as
> >> an alternative
> >> to GPSCon.
> >>
> >> Thanks,
> >> Said
> >>
> >>
> >> In a message dated 7/10/2009 07:17:31 Pacific Daylight Time,
> >> df6jb at ulrich-bangert.de writes:
> >>
> >> Guys,
> >>
> >> after a lot of help coming from Australia (thank you Hal and
> >> Kit) there is
> >> a
> >> stable version of my Z38XX utility available. It handles
> the Z3801,
> >> the Z3805, the Z3815 and the GCRU.
> >>
> >> It is available from the usual place. Enjoy!
> >>
> >> Ulrich Bangert
> >> www.ulrich-bangert.de
> >> Ortholzer Weg 1
> >> 27243 Gross Ippener
> >>
> >>
> >> _______________________________________________
> >> time-nuts mailing list -- time-nuts at febo.com
> >> To unsubscribe, go to
> >> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> >> and follow the instructions there.
> >
> >
> > _______________________________________________
> > time-nuts mailing list -- time-nuts at febo.com
> > To unsubscribe, go to
> > https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> > and follow the instructions there.
> >
> >
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
