[time-nuts] Thunderbolt reception problems
SAIDJACK at aol.com
SAIDJACK at aol.com
Tue Nov 24 01:52:03 UTC 2009
Hi Warren, et. al,

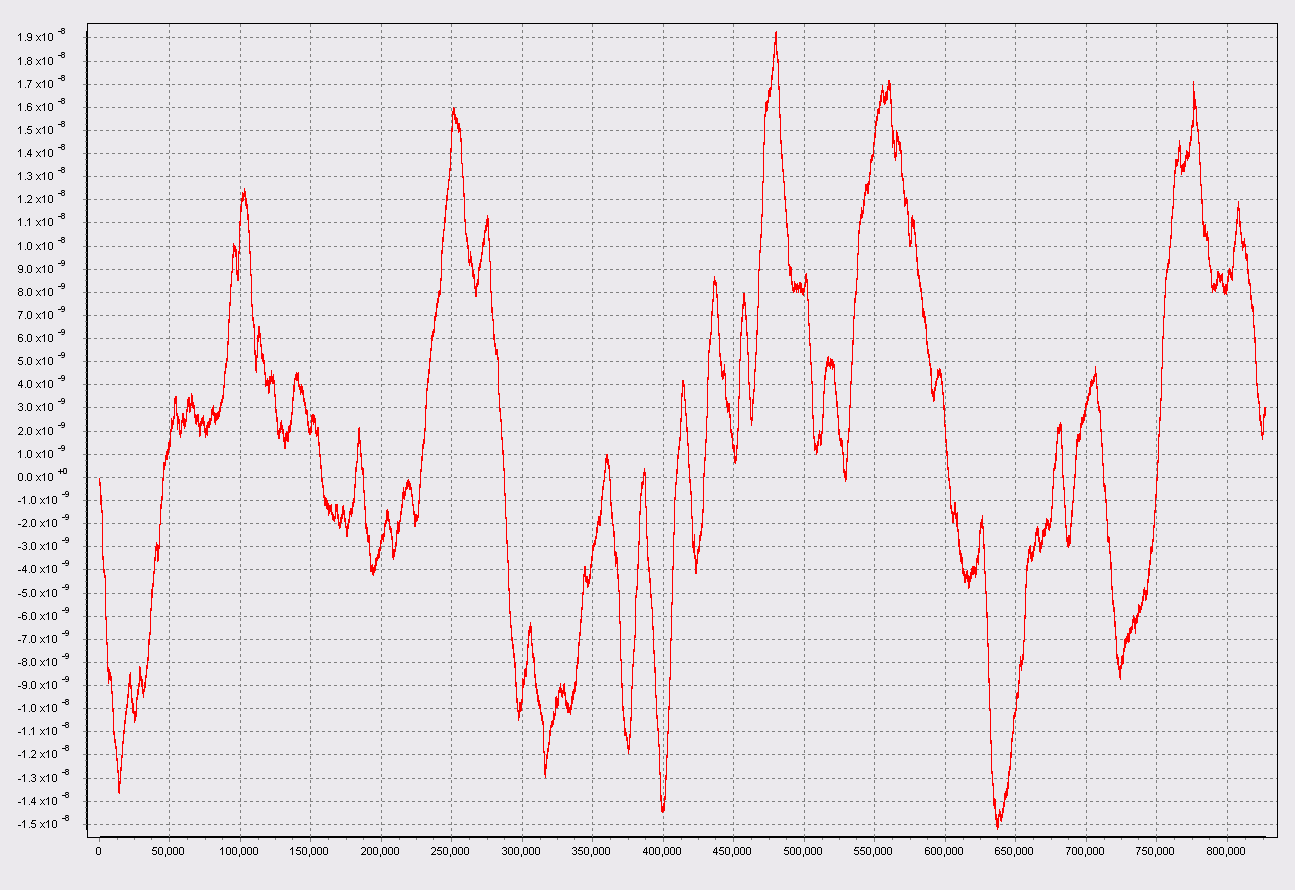

here is a plot (about 20hrs long) of my PRS-10 (driven by a M12+) compared
against my Thunderbolt both running from the same antenna feed. Comparison
done on the 10MHz outputs, at maximum sample rate on my 5370B counter. Both
units have been running for 6+ months now, the Thunderbolt has only been
locked for a day+ though.
Standard deviation is 7.6ns, and the mean is 1.5ns. Peak to Peak is ~ -15ns
to +19ns.
I was hoping for slightly better. Not sure who is the better of the two
(yet).
Bye,
Said
In a message dated 11/23/2009 11:22:27 Pacific Standard Time,
SAIDJACK at aol.com writes:
Will post a drift plot sometime later today.
bye,
Said
-------------- next part --------------
A non-text attachment was scrubbed...
Name: PRS-10_Thunderbolt.gif
Type: image/gif
Size: 37325 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20091123/558eab2c/attachment-0001.gif>
