[time-nuts] Double oven ocxo's was Tbolt reception problems
SAIDJACK at aol.com
SAIDJACK at aol.com
Sat Nov 28 15:41:38 UTC 2009
Hi guys,
it turns out I achieve the best results with an E1938A driven by a Fury
board, compared to my PRS-10 Rb. I have not tried a Fury GPSDO with a
standard DOCXO yet, but suspect similar results - that test to follow next week.

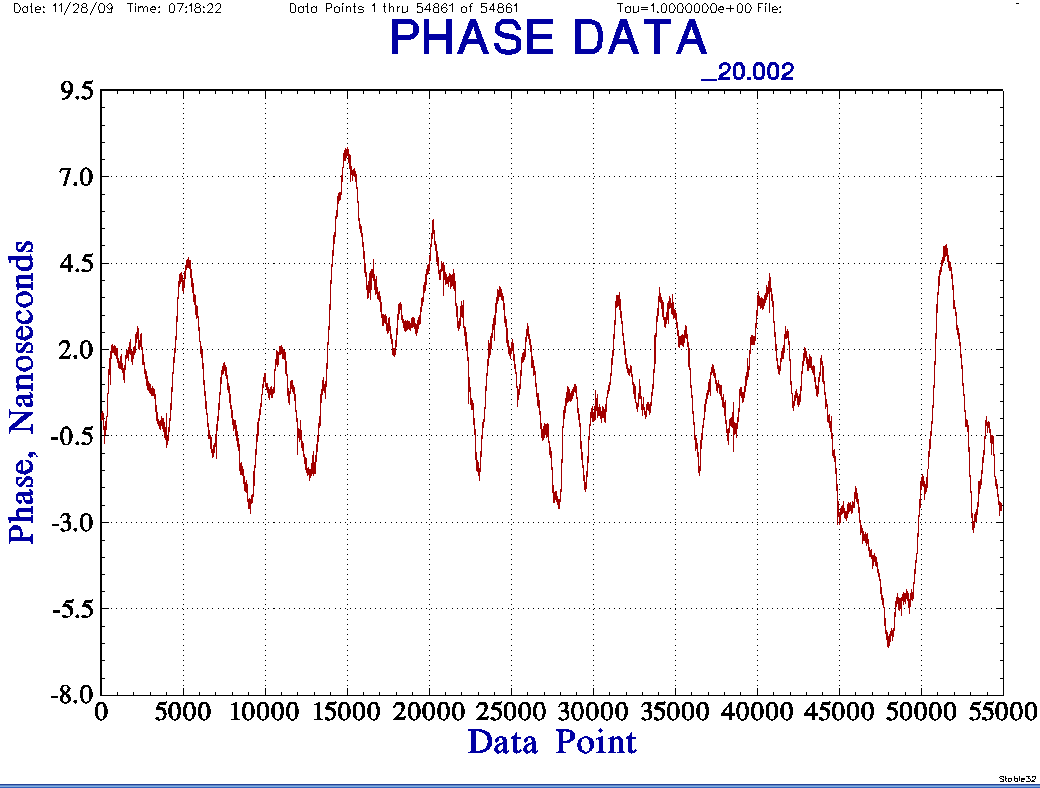

The standard deviation over 15 hours is about 2.3ns, the range less than
+/-8ns. Please see the attached plot. The E1938A has only been turned on
less than 2 days after a very long power-off period (4+ months), but it is
already very stable.
Next step is to see which of the two is better, after that how much STS
improvement can be gained by removing the GPS disciplining.
bye,
Said
In a message dated 11/25/2009 17:20:40 Pacific Standard Time,
richard at karlquist.com writes:
We demonstrated thermal gains of over 1 million in the E1938A
single oven oscillator. You don't need a double oven.
Rick Karlquist N6RK
-------------- next part --------------
A non-text attachment was scrubbed...
Name: E1938A_PRS10.gif
Type: image/gif
Size: 22684 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20091128/118c72fa/attachment-0001.gif>
