If you start with a mixer that runs 500 mV / radian (an RPD-1 at the typical 8 mV / degree + 10%) then -180 below that would be 0.5 nV. Since noise it coherent close in, the DSB  to SSB process nets you 1 nV out when you have -180 dbc noise.


On Aug 22, 2010, at 10:51 AM, Bruce Griffiths wrote:

>>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: JFETNoise.png
Type: image/png
Size: 44789 bytes
Desc: not available

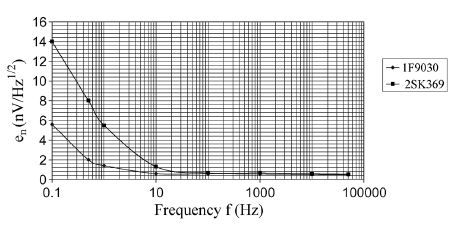

URL: <http://www.febo.com/pipermail/time-nuts/attachments/20100823/365e12db/attachment-0001.png>
-------------- next part --------------
>
>>
>>>>

So everything above (and an AD797 and likely an OP-37) will do better than 2 nV / Hz into 1K Hz. That would let you check oscillators in the "below -170", but not below -180 range. You might or might not find such an oscillator in your junk box. They certainly do exist.

On the plot above, both devices would let you do the same thing at 10 Hz. Now you are into the range of "highly unlikely to find". At reasonable frequencies, -135 is doing pretty well at 10 Hz. Bragging rights start at about -140. "Highly unlikely" cuts in much past that 10 Hz offset. I'm not talking about a one of a kind piece of magic at NIST, but about what's in your junk box.

The 2SK369 is still holding  "ok for -170"  at 1 Hz. Even for one of a kind magic, that's pretty crazy. Unlikely to find (and really tough to measure) cuts in at about -120 at 1 Hz.

At 0.1 Hz offset, you will need to run an instrument bandwidth below 0.01 Hz to get anything close to a good approximation to the noise. Most lab analyzers run > 100X t to get enough data. That puts you out around 10,000 seconds for the run. That's a crazy long time. DC coupled offsets are likely to nuke that run just about every time.

I'm by no means knocking the idea of having a good preamp. I'm only trying to point out that the numbers above are *way* past what a reasonable person might need to sort through their basement oscillator collection. 50 db is a lot of margin.

Bob
