[time-nuts] AVAR calculation

Tom Van Baak tvb at LeapSecond.com
Sun Jan 10 23:27:00 UTC 2010


> Comparing the overlapped Hadamard deviation and overlapped ADEV plots
> indicates that linear frequency drift may be significant for tau >
> 100sec or so.
>
> Bruce

Agreed. The data set exhibits a drift rate of about -1.e-10.

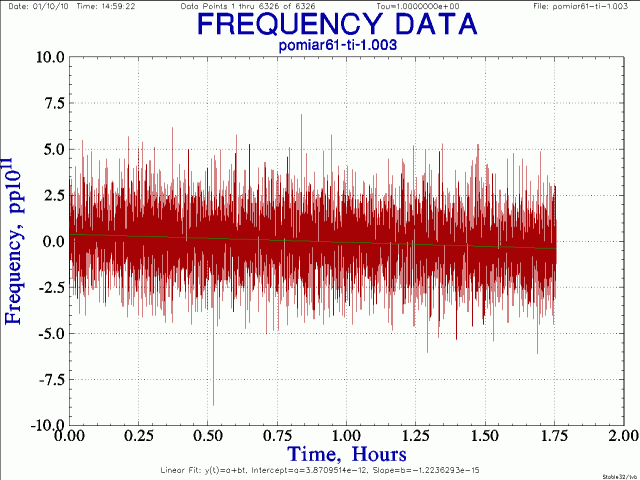

Attached is a raw frequency plot and you can just detect
the slope in the wash of short-term noise.

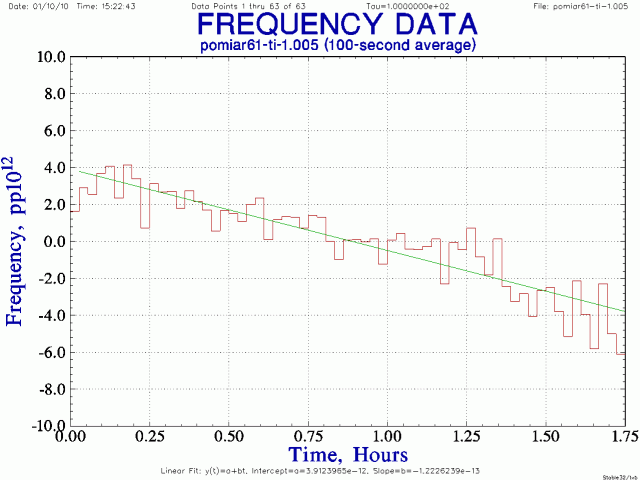

Also attached is a 100-second average frequency plot
where the linear frequency drift is much more evident.

/tvb
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pomiar61-freq-1.gif
Type: image/gif
Size: 33708 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20100110/c0f47682/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pomiar61-freq-100.gif
Type: image/gif
Size: 25330 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20100110/c0f47682/attachment-0003.gif>
