Hi Tom, everyone,

Tom Van Baak wrote:
> See: http://www.leapsecond.com/museum/pulsar for some
> pulsar ADEV stability plots and links to many research papers
> with all the details.

Your page starts with the question "if it was possible for an amateur to
receive pulsar signals?". Turns out you can, at least the particular
bunch of amateurs who have been restoring the 25m Dwingeloo radio
telescope (http://www.camras.nl). So far we've been able to receive 3
pulsars (B0329+54, the pulsar in the Crab nebula, and B0950+08). We can
see single pulses from each of these pulsars. With real-time
de-dispersion in about 20 MHz of bandwidth, we can even make the single
pulses of B0329+54 (with a period of 0.7145 seconds) audible trough a
subwoofer.

Could you do this with a more modest antenna? The lesser gain would need
to be compensated for by using as much bandwidth as possible (which
needs de-dispersion), and folding the signal by the pulsar period.
Folding in turn requires a stable clock, and compensating for the
doppler shift caused by the Earth's motions. I would say that receiving
the brightest pulsars is within reach of the bigger EME stations - but
still working on the calculations (and demonstration) to back this up.

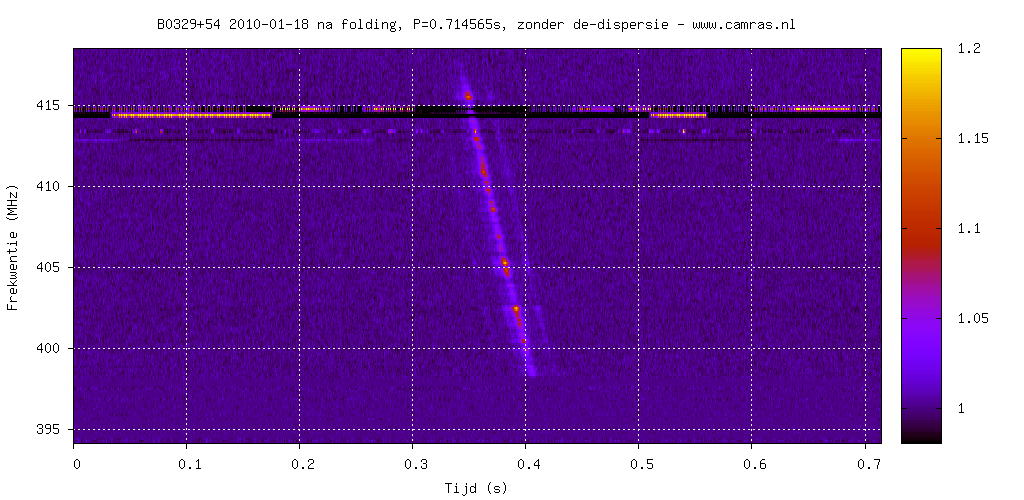

Attached is an image of about 10 minutes of pulsar data we recently
recorded; folded, but without de-dispersion. It shows the main pulse and
the less brighter subpulses. The slant of the pulse clearly shows the
dispersion by the Inter Stellar Medium. You can also see that the pulses
are brighter at certain frequencies doe to scintillation in the ISM, and
unfortunately some frequencies are of course affected by RFI. Apologies
that the labels are in Dutch, but I hope that they are self-explanatory.

Regards, Paul Boven - 73 de PEaNUT
