[time-nuts] Fix Trimble Oscillator??

[John Miles]

Hi, Bill / Chuck --

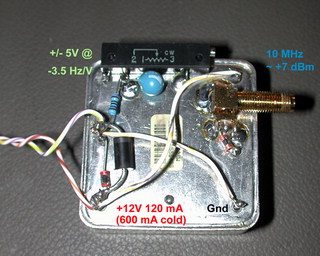

I can confirm that the whole oscillator including oven runs on 12 volts.
However, you do have to connect two different pins to +12 and two different
pins to ground to make it work (see attached).  Current drain should be in
the 500 mA neighborhood for the first couple of minutes.

The Trimble-labelled OCXOs are superb parts, well worth repairing if the
only problem is a bad oven controller.  I removed and measured the
oscillators from two Thunderbolts chosen at random, and they're in the same
ballpark as a premium-grade Wenzel ULN.

-- john, KE5FX


> -----Original Message-----
> From: time-nuts-bounces at febo.com [mailto:time-nuts-bounces at febo.com]On
> Behalf Of WB6BNQ
> Sent: Thursday, April 21, 2011 7:20 PM
> To: Discussion of precise time and frequency measurement
> Subject: Re: [time-nuts] Fix Trimble Oscillator??
>
>
> Hi Chuck,
>
> Refer to the following web site to see what another list member
> did in using an
> off board oscillator with a Trimble that had a not so good
> oscillator in it.
>
> http://www.thegleam.com/ke5fx/tbolt.htm
>
> You may want to back up to his main page and peruse some of his
> other pages.
>
> 73....Bill....WB6BNQ
>
>
> Chuck Forsberg WA7KGX N2469R wrote:
>
> > The 12 volt current is 76 milliamps starting or running.
> > I increased the voltage slightly and the temp rose to 32 deg C.
> > The frequency offset gets down to about 50 Hz.
> > Looks like the oven wants 18 or 24 volts.
> >
> > So .... has anyone disassembled one of these ovens
> > and made repairs?
> >
