[time-nuts] FE-5680A dumb question...

jmfranke jmfranke at cox.net
Wed Jan 4 02:20:29 UTC 2012

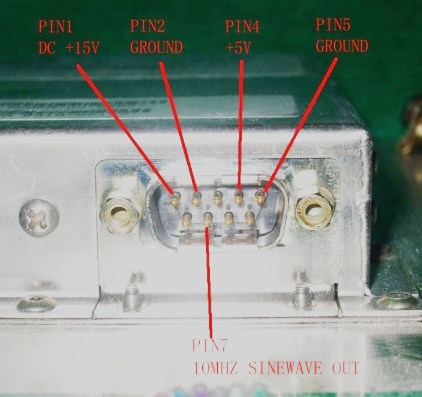

Pin 7 is RF output, 2 & 5 are ground.

John  WA4WDL

--------------------------------------------------
From: "Brian, WA1ZMS" <wa1zms at att.net>
Sent: Tuesday, January 03, 2012 8:58 PM
To: "Time-Nuts" <time-nuts at febo.com>
Subject: [time-nuts] FE-5680A dumb question...

> My E-bay FE-5680A finally arrived. (4weeks later)
>
>
>
> Of the pins on the DB-9 connector, which one is the RF output?
>
> The manual only talks about an SMA output.
>
>
>
> I know this has been talked about before, but I cannot find the thread.
>
>
>
> Thanks in advance & sorry for bandwidth,
>
> -Brian, WA1ZMS
>
>
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: T2DARHXmtaXXXXXXXX_!!21574609.jpg
Type: image/jpeg
Size: 117533 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120103/d04d9b2d/attachment-0001.jpg>
