[time-nuts] Leap Second Results

BD Systems Inc. bdsysco at yahoo.com
Sun Jul 1 02:32:38 UTC 2012


In testing and loggging the Z3810A, Z3805A, Z3815A, Z3816A, 59503A, 58503B and the 59551A GPS Receivers, all of which sequenced as follows (Note Denver MST)

17:59:59
18:00:00
18:00:01
18:00:01 (at this point the Leap Second indicator was cleared).

Chuck Zabilski

From: "time-nuts-request at febo.com" <time-nuts-request at febo.com>
To: time-nuts at febo.com
Sent: Saturday, June 30, 2012 8:02 PM
Subject: time-nuts Digest, Vol 96, Issue 3

Send time-nuts mailing list submissions to
    time-nuts at febo.com

To subscribe or unsubscribe via the World Wide Web, visit
    https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
or, via email, send a message with subject or body 'help' to
    time-nuts-request at febo.com

You can reach the person managing the list at
    time-nuts-owner at febo.com

When replying, please edit your Subject line so it is more specific
than "Re: Contents of time-nuts digest..."


Today's Topics:

  1. Leap Second on Datum ExacTime 6000...Oh well... (Bert, VE2ZAZ)
  2. Re: So,  how did you spend your leapsecond? (J. L. Trantham)
  3. My leap second capture attempts (Joseph Gray)
  4. Re: My leap second capture attempts (Joseph Gray)
  5. Re: So, how did you spend your leapsecond? (Pierpaolo Bernardi)
  6. Re: Leap second going... (EB4APL)
  7. Leap-second on DCF-77 (Paul Boven)


----------------------------------------------------------------------

Message: 1
Date: Sat, 30 Jun 2012 17:44:23 -0700 (PDT)
From: "Bert, VE2ZAZ" <ve2zaz at yahoo.ca>
To: "time-nuts at febo.com" <time-nuts at febo.com>
Subject: [time-nuts] Leap Second on Datum ExacTime 6000...Oh well...
Message-ID:
    <1341103463.50052.YahooMailNeo at web112005.mail.gq1.yahoo.com>
Content-Type: text/plain; charset=us-ascii



Hi,

This is to report the behavior of my Datum ExacTime 6000 unit dealing with the leap second. I think the behavior shows the age of the unit (around year 2000). It has firmware DT102E.

- It showed two "58" seconds, that would be the leap second insertion...

- It showed a "60" second... what? That made it two leap seconds...

- It skipped the "05" second of the following minute to subtract the extraneous leap second added above...

I have captured this on video and will likely put that on Youtube for those who may be interested. I captured CHU's audio in the background. By the way, CHU's transmitted data was an extra tick for the "60" second.

Regards,

Bert, VE2ZAZ




------------------------------

Message: 2
Date: Sat, 30 Jun 2012 19:45:45 -0500
From: "J. L. Trantham" <jltran at att.net>
To: "'Discussion of precise time and frequency measurement'"
    <time-nuts at febo.com>
Subject: Re: [time-nuts] So,  how did you spend your leapsecond?
Message-ID: <C590153B648C46358B0CCEAAF91C1CA1 at yourb25d9e178c>
Content-Type: text/plain;    charset="us-ascii"

Watched it on my Garmin GPSMAP396 with a 3D fix.  It did the 23:59:58,
23:59:59, 23:59:59, 24:00:00 thing.  No 60!

Joe

-----Original Message-----
From: time-nuts-bounces at febo.com [mailto:time-nuts-bounces at febo.com] On
Behalf Of Mark Sims
Sent: Saturday, June 30, 2012 7:07 PM
To: time-nuts at febo.com
Subject: [time-nuts] So, how did you spend your leapsecond?


?
_______________________________________________
time-nuts mailing list -- time-nuts at febo.com
To unsubscribe, go to
https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
and follow the instructions there.




------------------------------

Message: 3
Date: Sat, 30 Jun 2012 18:48:49 -0600
From: Joseph Gray <jgray at zianet.com>
To: Discussion of precise time and frequency measurement
    <time-nuts at febo.com>
Subject: [time-nuts] My leap second capture attempts
Message-ID:
    <CAF7oPz0U3s7p56_266QBusZWFVFtdythB-Ye=n7vhyqT6yK=UQ at mail.gmail.com>
Content-Type: text/plain; charset=ISO-8859-1

Success - Windows 7, running Meinberg NTP. Screen capture of two
desktop widgets that I use. In the video, note that 00:00:00 UTC hangs
for two seconds.

https://dl.dropbox.com/u/19599147/Leap%20Second%202012.m4v

Failure - My Galaxy Tab Android tablet, running the GPS Test app. Not
only did the GPS Test app not show any indication of a leap second,
but it shows both the local date and the UTC date as one day later.
The Android clock shows the correct date.

Joe Gray
W5JG



------------------------------

Message: 4
Date: Sat, 30 Jun 2012 18:51:51 -0600
From: Joseph Gray <jgray at zianet.com>
To: Discussion of precise time and frequency measurement
    <time-nuts at febo.com>
Subject: Re: [time-nuts] My leap second capture attempts
Message-ID:
    <CAF7oPz22X0DetkAj4_bHSD7V6UyCjzzNYDA9QKTa+gmqPCuRww at mail.gmail.com>
Content-Type: text/plain; charset=ISO-8859-1

Oh, as an aside to this - I had Netflix paused while I waited for the
leap second. The video was fullscreen. At the moment of 00:00:00, the
video left fullscreen mode and everything was black. I don't know if
this was caused by the leap second, or simply some glitch at the top
of the hour, or perhaps at midnight UTC. I'll have to experiment to
see if I can reproduce it.

Joe Gray
W5JG


On Sat, Jun 30, 2012 at 6:48 PM, Joseph Gray <jgray at zianet.com> wrote:
> Success - Windows 7, running Meinberg NTP. Screen capture of two
> desktop widgets that I use. In the video, note that 00:00:00 UTC hangs
> for two seconds.
>
> https://dl.dropbox.com/u/19599147/Leap%20Second%202012.m4v
>
> Failure - My Galaxy Tab Android tablet, running the GPS Test app. Not
> only did the GPS Test app not show any indication of a leap second,
> but it shows both the local date and the UTC date as one day later.
> The Android clock shows the correct date.
>
> Joe Gray
> W5JG



------------------------------

Message: 5
Date: Sun, 1 Jul 2012 02:52:39 +0200
From: Pierpaolo Bernardi <olopierpa at gmail.com>
To: Discussion of precise time and frequency measurement
    <time-nuts at febo.com>
Subject: Re: [time-nuts] So, how did you spend your leapsecond?
Message-ID:
    <CANY8u7HKfGxJQ0_sfpSpVnh_cz6vQjp_eG+xw9R97uc1fci+pA at mail.gmail.com>
Content-Type: text/plain; charset=UTF-8

Watched it on my Garmin Gpsmap 60Cx, which completely ignored it 8^(


2012/7/1, J. L. Trantham <jltran at att.net>:
> Watched it on my Garmin GPSMAP396 with a 3D fix.  It did the 23:59:58,
> 23:59:59, 23:59:59, 24:00:00 thing.  No 60!
>
> Joe
>
> -----Original Message-----
> From: time-nuts-bounces at febo.com [mailto:time-nuts-bounces at febo.com] On
> Behalf Of Mark Sims
> Sent: Saturday, June 30, 2012 7:07 PM
> To: time-nuts at febo.com
> Subject: [time-nuts] So, how did you spend your leapsecond?
>
>
> ?
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>

--
Inviato dal mio dispositivo mobile



------------------------------

Message: 6
Date: Sun, 01 Jul 2012 02:55:04 +0200
From: EB4APL <eb4apl at cembreros.jazztel.es>
To: time-nuts at febo.com
Subject: Re: [time-nuts] Leap second going...
Message-ID: <4FEF9FE8.4010600 at cembreros.jazztel.es>
Content-Type: text/plain; charset=ISO-8859-1; format=flowed

I also saw (and captured a video sequence) of the leap second in
NTGS50AA via LH, what a difference from my first encounter with the leap
second!.
I was working in the frequency timing subsystem of a  Deep Space
Tracking Facility when NASA decided to introduce the leap seconds, I
don't remember it exactly but maybe we were using GMT  because until
then, we used to offset our Cs and Rb frequency at the beginning of each
year (did you notice the thumbwheels inside these standards?). Our first
leap second was in Dec 31 and being this night so special the operations
crews were given permission to leave since no any tracking activity were
planned.  I was in a party and received a call to go to the station to
manually introduce the leap second on the system.  Our frequency and
timing subsystem predated the leap seconds several years so I had to set
our redundant clock 1 second late and make a changeover between second
00 and 01 so the second 00 was 2 seconds long.  Good old times ...

Best regards,
Ignacio, EB4APL


On 01/07/2012 2:07, Dan Rae wrote:
> Just to say it did work with LH:
>
> dr
>
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.




------------------------------

Message: 7
Date: Sun, 01 Jul 2012 04:02:29 +0200
From: Paul Boven <p.boven at xs4all.nl>
To: Discussion of precise time and frequency measurement
    <time-nuts at febo.com>
Subject: [time-nuts] Leap-second on DCF-77
Message-ID: <4FEFAFB5.4090106 at xs4all.nl>
Content-Type: text/plain; charset="iso-8859-1"; Format="flowed"

Hi folks,

The leap second was of course broadcast by the German DCF-77 station,
and this went perfectly, as expected. At 1AM (CEST) the 'Leap Second
Announcement' bit was set to high in the 19th second of the datagram.
The leapsecond itself was broadcast by not modulating[1] the 59th second
(which is normally silent to mark the end of the minute), and instead
the carrier was silent on the 60th second. And in the 19th second of the
new minute, the leap second announcement was gone again.

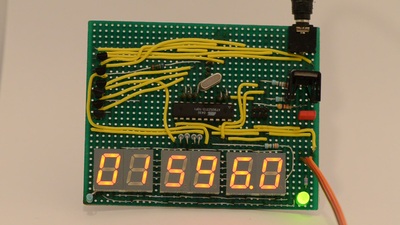

Recorded all this on a DCF-receiver I designed and built over a decade
ago, and still works great. Might even get around to putting it in an
enclosure before the next leap-second ;-)

Small movie: http://epboven.home.xs4all.nl/ls-2012.html

Regards, Paul Boven - 73 de PEaNUT

[1] DCF-77 seconds are transmitted by reducing the output power of the
transmitter for 1/10th (a zero) or 2/10th (a one). There is also a
phase-modulation on the signal which my receiver doesn't use.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: frame-0084.jpg
Type: image/jpeg
Size: 36189 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120701/c19778d8/attachment.jpg>

------------------------------
