[time-nuts] TAPR "TADD-2 Mini" PPS Divider Now Available

John Ackermann N8UR jra at febo.com
Sun Mar 25 18:20:14 UTC 2012


We are happy* to announce that TAPR is now accepting orders for the
TADD-2 Mini (or T2-Mini) pulse-per-second ("PPS") frequency divider:
http://www.tapr.org/kits_t2-mini.html.

The T2-Mini is a tiny (0.75 x 2.0 inch) board that accepts a 1, 2.5, 5,
or 10 MHz input and uses a PIC chip running open source firmware to
divide it to a PPS signal.  Changing the firmware can allow applications
such as 32.768 kHz output to drive clock chips.

Why do you need a PPS divider?  If you want to measure the
characteristics of an oscillator, PPS comparisons can be much more
precise than a typical frequency counter and can be done with simple
equipment.  Dividing your oscillator to a PPS signal allows easy direct
comparison against GPS.  Every time-nut needs one (or several...)

The T2-Mini uses surface mount parts tightly jammed on a very small
board.  TAPR offers three versions, each with all SMT parts installed:

*  Board alone for $44 ($39 for TAPR members)

*  Board with programmed PIC chip, connectors, and other required parts
for $55 ($49 for TAPR members)

*  Assembled and power-tested version for a price still to be finalized,
but probably about $79.  If you're interested, please contact TAPR via
https://tapr.org/inforequest.php

We are taking orders for the basic and connector-kit versions now, with
shipment expected in about three weeks.

For more information, or to order, go to
http://www.tapr.org/kits_t2-mini.html.  A preliminary version of the
product manual is at http://www.tapr.org/~n8ur/T2_Mini_Manual.pdf

John

*  You don't know *how* happy -- T2-Mini design started three years ago,
but it's amazing how life can get in the way of the fun stuff...
-------------- next part --------------
A non-text attachment was scrubbed...

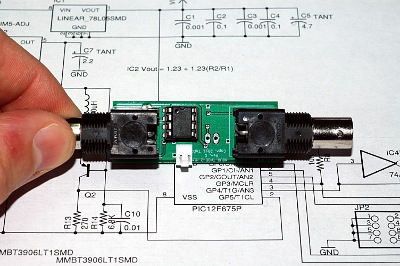

Name: TADD-2_Mini_Top_small.jpg
Type: image/jpeg
Size: 54565 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120325/cae6e916/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

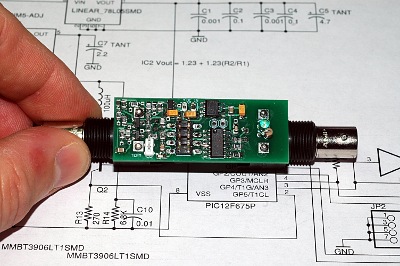

Name: TADD-2_Mini_Bottom_small.jpg
Type: image/jpeg
Size: 54846 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20120325/cae6e916/attachment-0003.jpg>
