[time-nuts] Z3801A Freq jumping

Mark C. Stephens marks at non-stop.com.au
Tue Jul 23 06:33:41 EDT 2013


Hi George,





Oddly enough, I have seen the Self-test error and EFC error on three Z3816A I have in for repair now.



All have had one of two problems.

1. The weight of the OCXO breaks the solder joint on the PCB and intermittently causes huge TI jumps.

2. The insulating washers are missing from the pins of the OCXO causing a short between the case and the EFC line.



Problem 2 has been seen twice from eBay seller YIXUN. Unfortunately, they seem to more interested in grabbing your money than supplying decent products.

I'd steer away from Yixun HK personally.



I have one particularly bad Z3816A on hand at the moment where the OCXO plated through hole has been ripped out of contact with the board.

These Z3816A must have been thrown about pretty hard for the oscillator to rip itself out of the board!

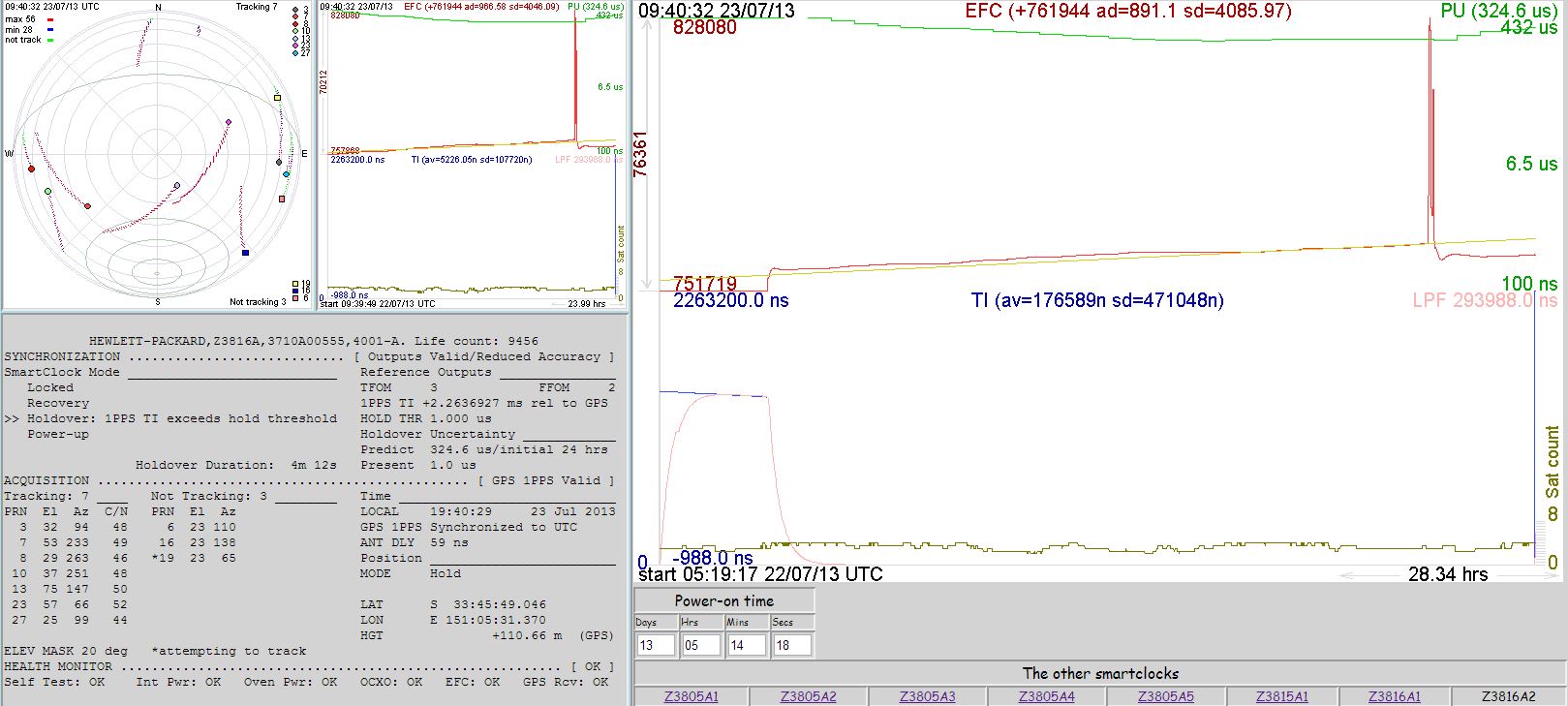

Interestingly enough the TI jumps up into the ms, never mind 60us! See attached.



Actually, I'll take some photos of the repair job and post them on the blog.

The repair is basically grinding down around the plated through hole until I find the layer that connected to the plated through hole.

This is done with the finest diamond point dremel.



I'll get back to you with the results ;)



As for your Z3801A, I am doubtful it is a problem with the 10811, I would be inclined to suspect GPS related.

You could always pull the 10811 and run it standalone and monitor the output for intermittency.

The only problem I have heard of is the thin blue cables that go to the 10811 having intermittent grounds.



I am working with WarrenS to produce an article on improving the grounds in the 10811 amongst other performance and functional improvements.





-marki
