 Warren,

Understood. I have a couple more questions. Once the thunderbolt has completed a survey, does it continue to update its position or are the final numbers at the end of the survey frozen until a new survey has started.

If it continues to update the logging feature in the thunderbolt monitor outputs the data in a convenient format.I will also give Lady Heather a try.

it has several operational modes such as; stationary, land and a couple of others. Which mode would be most useful to determine a fixed position.

I have three of the little beasties chugging away and doing an initial survey. Later on this evening I'll see what they come up with.

Thanks for your help – John




Re: Crude Survey Technique (WarrenS)








-----Original Message-----
From: time-nuts-request <time-nuts-request at febo.com>
To: time-nuts <time-nuts at febo.com>
Sent: Sat, Nov 23, 2013 1:07 pm
Subject: time-nuts Digest, Vol 112, Issue 80


Send time-nuts mailing list submissions to
	time-nuts at febo.com

To subscribe or unsubscribe via the World Wide Web, visit
	https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
or, via email, send a message with subject or body 'help' to
	time-nuts-request at febo.com

You can reach the person managing the list at
	time-nuts-owner at febo.com

When replying, please edit your Subject line so it is more specific
than "Re: Contents of time-nuts digest..."


Today's Topics:

   1. Re: Crude Survey Technique (WarrenS)


----------------------------------------------------------------------

Message: 1
Date: Sat, 23 Nov 2013 11:03:54 -0800
From: "WarrenS" <warrensjmail-one at yahoo.com>
To: "Discussion of precise time and frequency measurement"
	<time-nuts at febo.com>
Subject: Re: [time-nuts] Crude Survey Technique
Message-ID: <CBA8FAFF2BCD4EF2A5A2D6B98BF891DB at Warcon28Gz>
Content-Type: text/plain; charset="iso-8859-1"; Format="flowed"


John

In answer to your original questions,

No problem if you have a good setup including a good sky view, antenna, and
TBolt setup.
It is important to do each run at the different locations at the same time
of the day and average the results for as long as you can.
Best is to do a 24 Hr survey at each location.

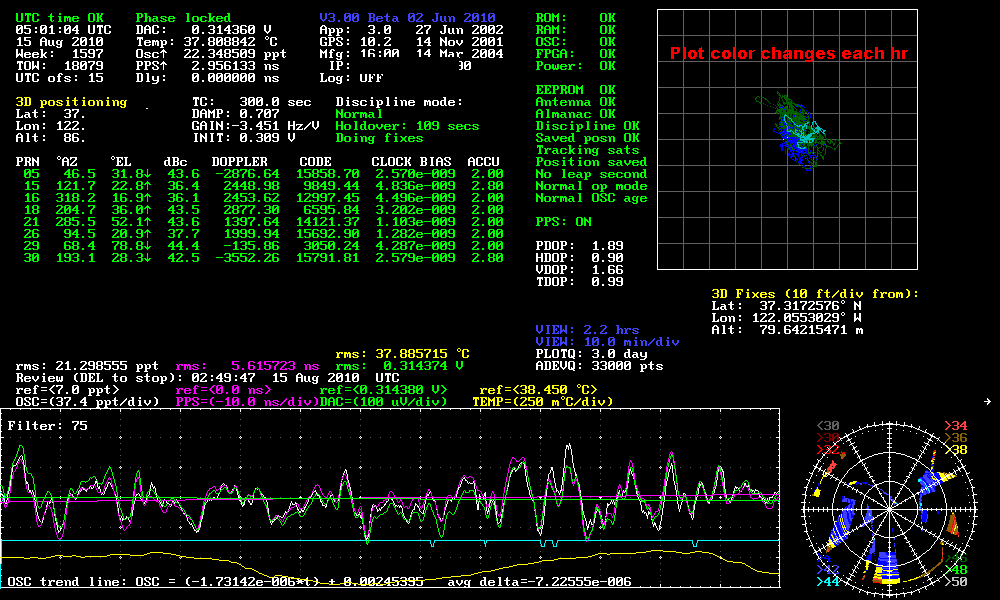

see the attached LH plot for the effect of time on location reading error.

Multiple Tbolts on the same antenna don't help, unless they are on different
antennas.

ws

***************
----- Original Message -----
From: <johncroos at aol.com>
To: <time-nuts at febo.com>
Sent: Thursday, November 21, 2013 10:52 AM
Subject: [time-nuts] Crude Survey Technique


>I wish to establish a north south line on my property to an accuracy of +/-
>2 degrees.
>Could this be done by loading a T-bolt, Antenna, Power source, and laptop
>into my
>little red wagon? The idea being to find two positions several hundred ft
>apart where either LH or T-bolt Mon report the same latitude? Will either
>of these programs report to >sufficient accuracy? The base line would be
>300 ft, though more is possible.I realizes that the T-bolt is not a survey
>device, but I can spend several hours fixing each position if >required.

>All comments appreciated.?? -73 john k6iql

>Question - >If I use 3 T-bolts on the same antenna, feedline, splitter etc.
>and run 3 instances of T-bolt mon - can the results be improved???
