Hello time-nuts,

Please excuse the blatantly commercial announcement, I generally keep
business matters off the list, but I have some Wenzel oscillators that may
be of interest to time-nuts and wanted to give you first crack at them.

These are Wenzel 500-06769 units, custom number for Harris used in
microwave radios.  Output is 100MHz at +20dBm.  Supply input is +12 volts
DC (about 500mA at start).  EFC runs between 0.5V and 4.5V with positive
coefficient and is about 335Hz/V.

Unit is in standard 2" x 2" x .75" package.  Output connector is female SMA.

These would make great units for synthesizer and DDS projects.  I don't
have the ability to measure the phase noise, but should be relatively good
as they were used at microwave frequencies in their past life.

I'm asking $50 each for them and $7 (any quantity) Priority Mail shipping
to U.S. addresses only.  If you would like one (or more) please PayPal to

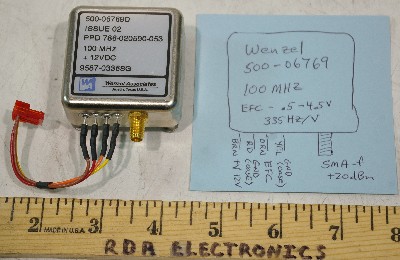

paypal at rdrelectronics.com.  I have attached a picture of one unit with the
pinout.

Regards,
Skip Withrow
RDR Electronics, Inc.
303-790-1830 8am-5pm M-F
