Tom wrote:

>As I understand it, his project is to use the high frequency output
>of a ublox NEO-7M to discipline a MV89 with a James Miller-style analog PLL.
>    *   *   *
>(perhaps someone can post an English translation for us)

Tom,

I have a machine-translated PDF (~2.5MB), but nowhere to put it
up.  If you have web space for it, please feel free to do so
(assuming that Karen does not object).

I have reservations about the potential of any Miller-style GPSDO,
because using an analog PLL essentially guarantees that the crossover
to GPS will be at a tau orders of magnitude lower than it should be

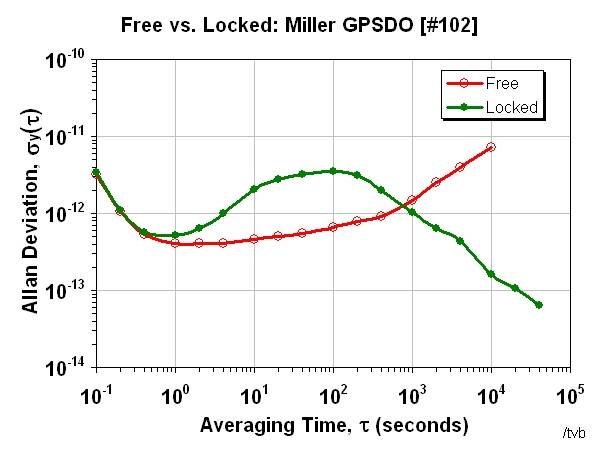

-- the Miller unit crosses over about 3 OOM too low (see attached
plot, from <http://www.leapsecond.com/pages/gpsdo/>).

The beloved Thunderbolt also crosses over about 2.5 OOM too early, if
you use the factory loop settings (id.).  But it has an ADPLL with
adjustable parameters, so a time nut can tune the loop for best
performance with the particular OCXO in the unit.  (See
<http://www.ke5fx.com/tbolt.htm>.)

Best regards,

Charles


-------------- next part --------------
A non-text attachment was scrubbed...
Name: Miller_GPSDO_ADEV.jpg
Type: image/jpeg
Size: 29695 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141103/a232b407/attachment-0001.jpg>
