[time-nuts] Lucent GPDSO TTI ps graph and efc is this sick?

paul swed paulswedb at gmail.com
Thu Nov 13 21:30:05 EST 2014


Hello to the group.
Running the Lucent GPSDO and its been on for 5 days now.

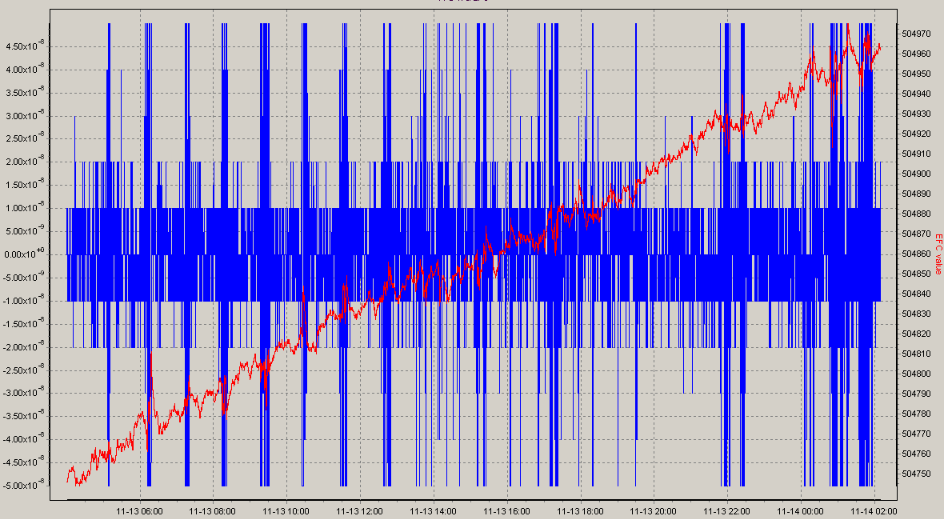

This is a capture from the z3811 program.

I did not think I could get this graph out to time nuts. The actual files
are quite large. However a .png makes it pretty compact.

My question Is this normal? I did not expect this much jitter.
Thanks in advance.
Regards
Paul
WB8TSL
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Capture2.PNG
Type: image/png
Size: 76796 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141113/79ac6661/attachment-0001.png>
