Hello,

Recently, I acquired video distribution amplifier (model Altinex
DA1804NT). It says it could handle 350Mhz. I am planing to use it to
split 10Mhz Ref signal from my OCXO. This OCXO I bought on auction site.
It has Oscilloquarz model 8663-SX plus some components which give me 4
outputs - 2 sines and two squares. After few days of "warm up" I did
measurement of ADV from one of the sine outputs and then measurement of
the same sine signal from OCXO, but this time through the Altinex DA.
Each test took 8 hours. Attached is the results.

NOTE: on the ALTINEX* charts I forgot to change the label for OCXO. So,
its not DATUM. It is Oscilloquarz 8663-SX
I was using Trimble TB as a ref signal  for HP 5386

Since I have no  instruments which measuring phase noise, I am
interesting, what will be the quick method to measure the phase noise
for that DA ?


--
WBW,

V.P.
-------------- next part --------------
A non-text attachment was scrubbed...

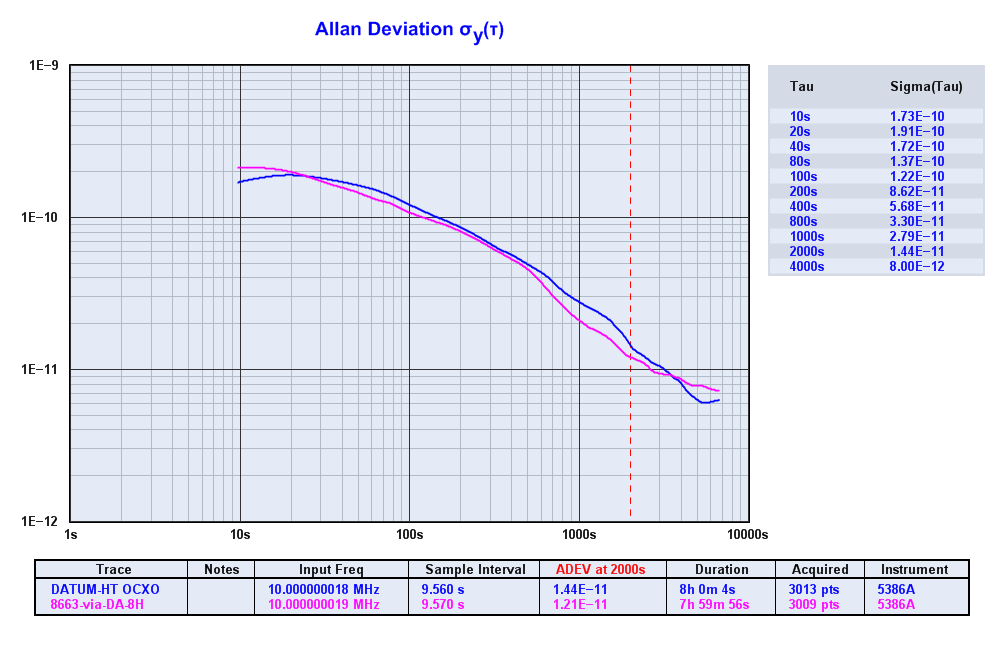

Name: ALTINEX-DA.png
Type: image/png
Size: 56818 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20150527/f850e4dc/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...

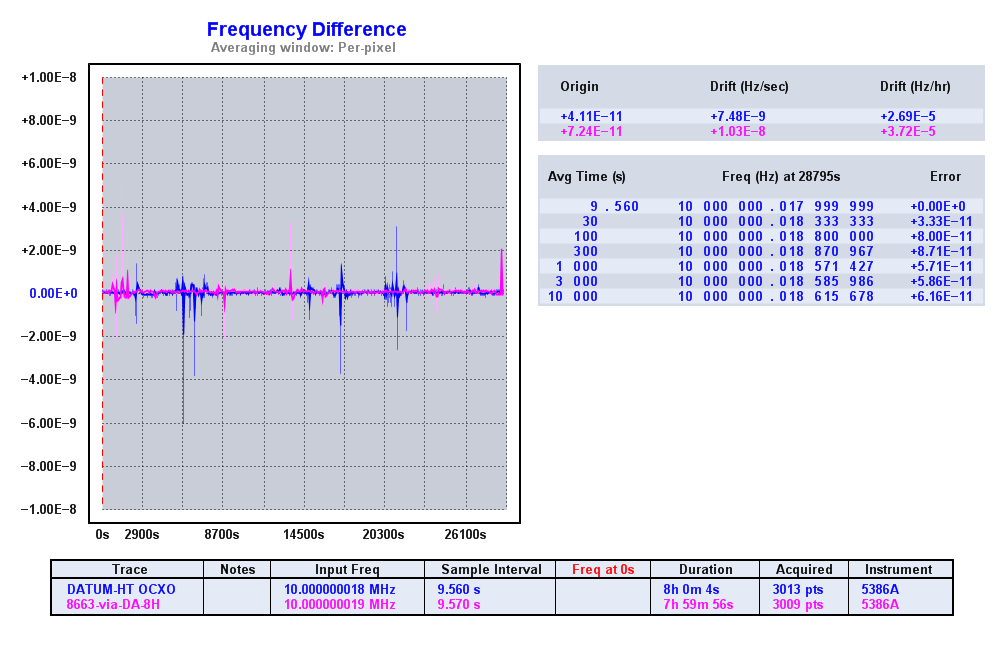

Name: ALTINEX-DA-F.png
Type: image/png
Size: 50024 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20150527/f850e4dc/attachment-0005.png>
-------------- next part --------------
A non-text attachment was scrubbed...

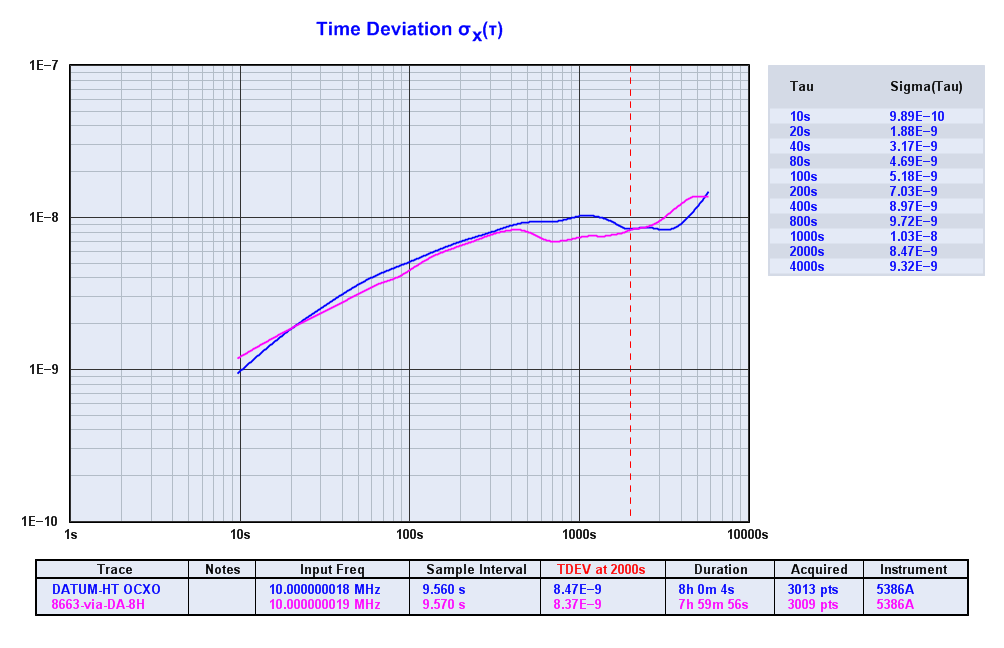

Name: ALTINEX-DA-T.png
Type: image/png
Size: 56612 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20150527/f850e4dc/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...

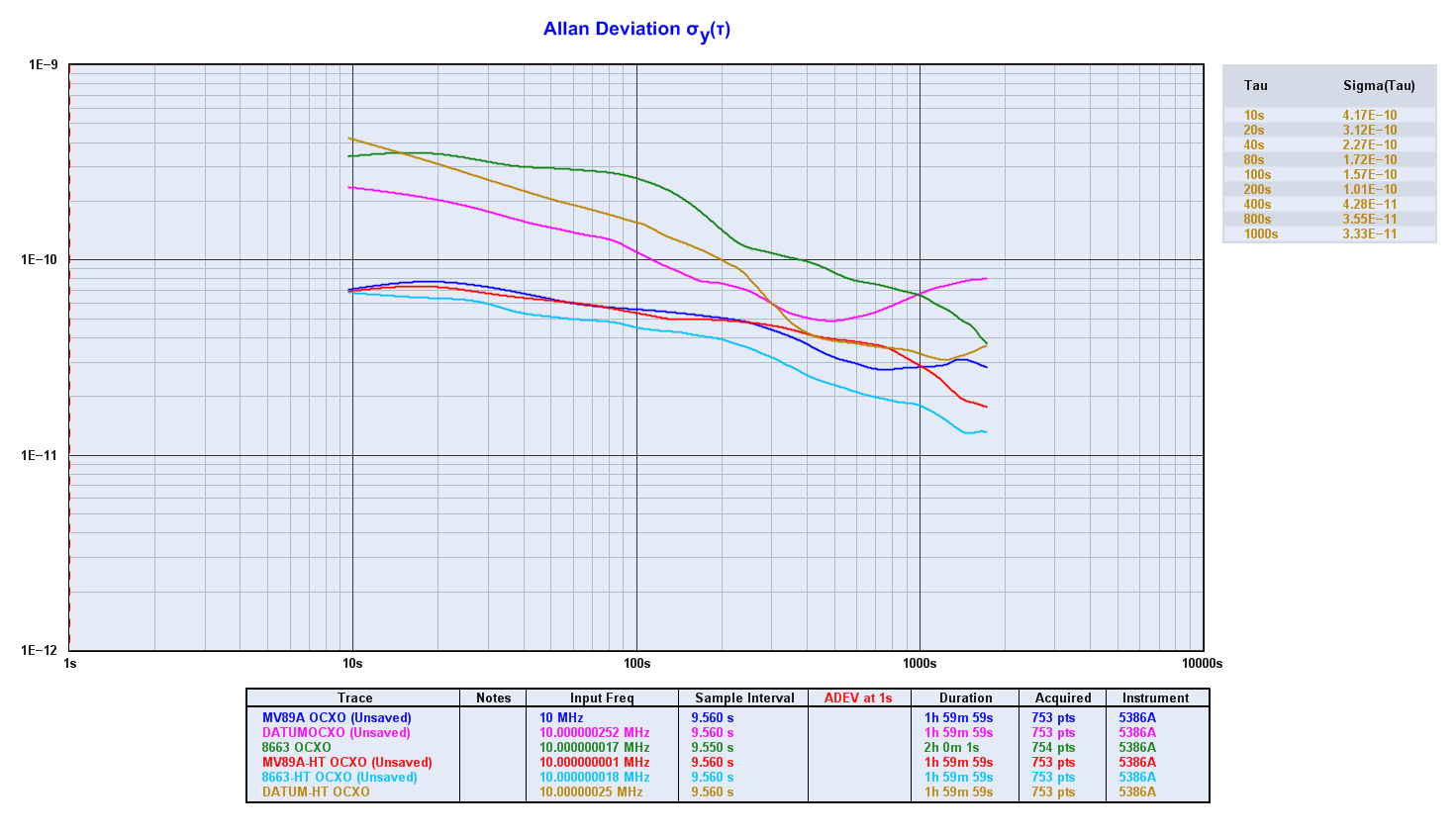

Name: OCXO2.png
