[time-nuts] Unified VCXO Carrier Board

Charles Steinmetz csteinmetz at yandex.com
Sat Oct 24 09:38:27 EDT 2015

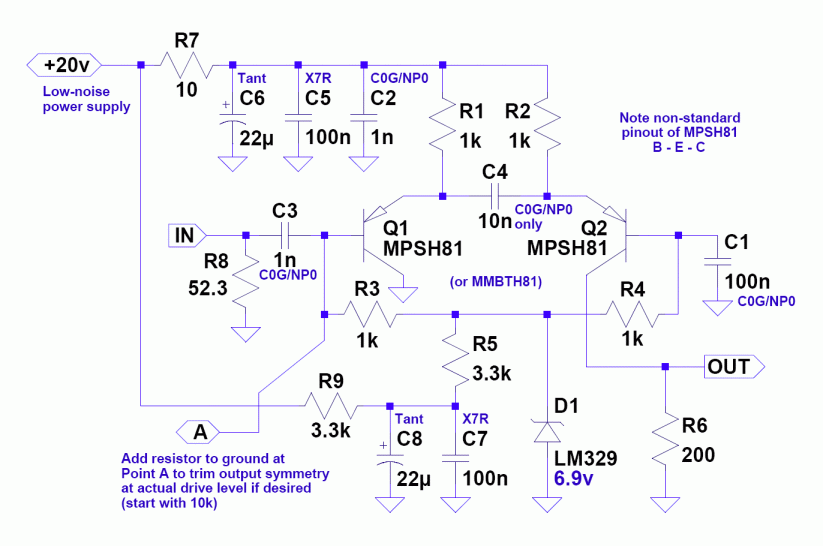

The schematic I posted yesterday of the optimized Wenzel-style
squarer did not specify capacitor types for C1, C3, and C4.  All
three should be C0G/NP0, and C4 *must* be C0G/NP0.  The attached
schematic is revised accordingly.

Best regards,

Charles
