[time-nuts] Switching regulator replacement for 7805
John Ackermann N8UR
jra at febo.com
Sun Dec 4 13:50:21 EST 2016
I found a cute little switching regulator that's a drop-in replacement
for an LM7805: http://www.ebay.com/itm/261243604047
I got a couple to play with, mainly to see how bad the noise would be.

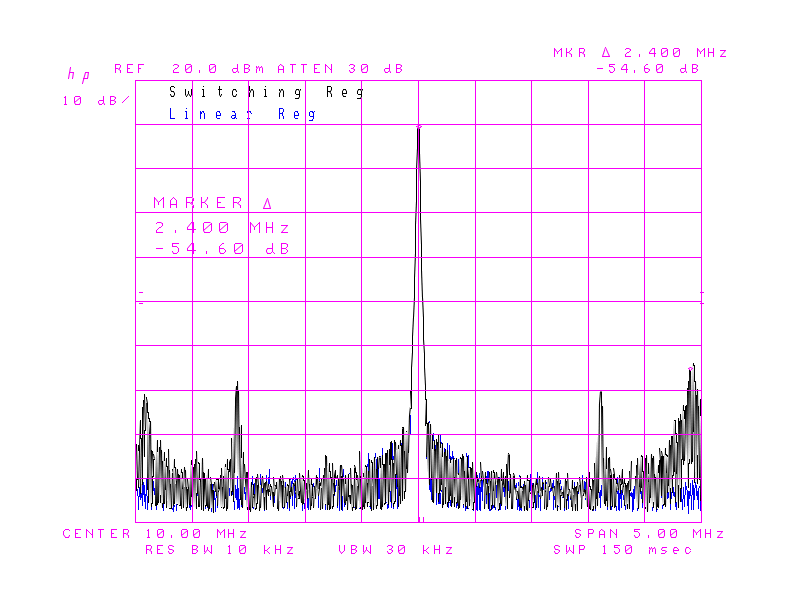

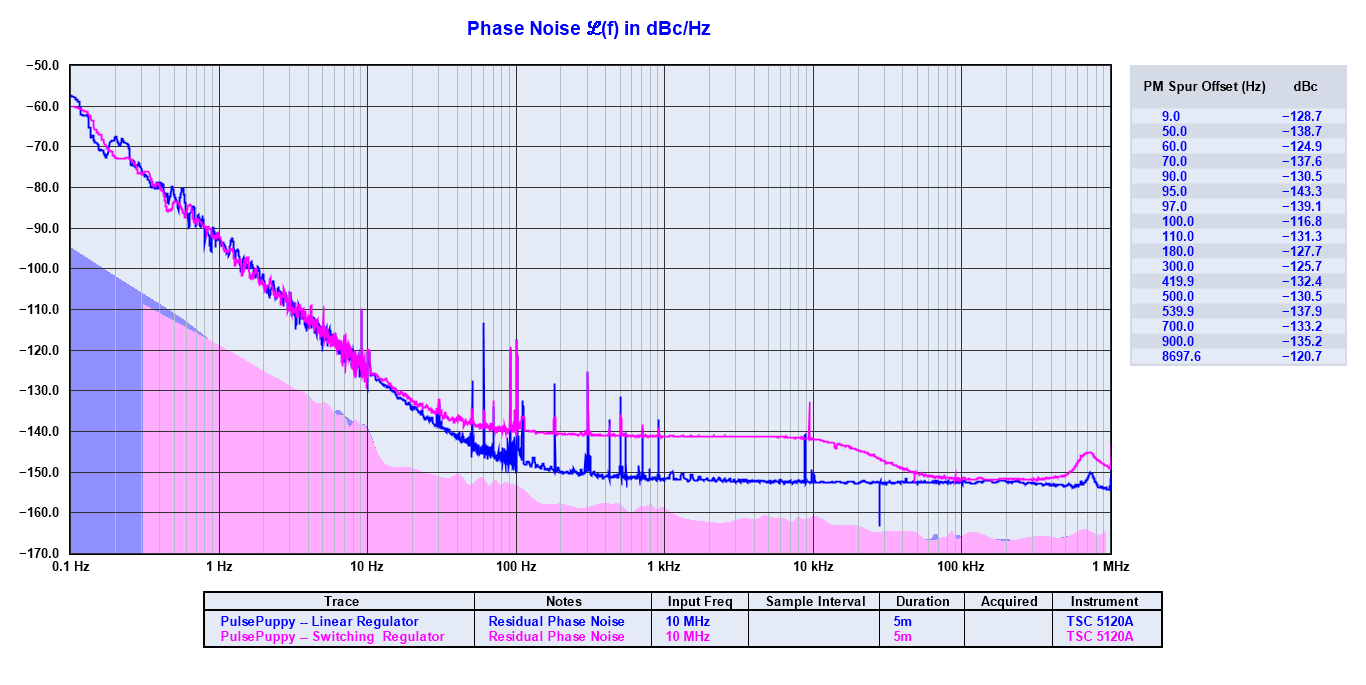

Here are spectrum analyzer and PN shots comparing a cheap surplus OCXO
when driven by a regular 7805 and by the switching replacement.
The switching frequency is supposed to be 2 MHz but you can see that
it's more like 2.4 MHz. Whether this performance is sufficient for any
application is up to you. It sure runs a lot cooler than a 7805, though!
John
-------------- next part --------------
A non-text attachment was scrubbed...
Name: PulsePuppy-regulator_comparison.png
Type: image/png
Size: 113990 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20161204/309fc360/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Regulator_Comparison.gif
Type: image/gif
Size: 32708 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20161204/309fc360/attachment-0001.gif>
