[time-nuts] TU60-D120-131 Specs....?

Bryan _ bpl521 at outlook.com
Sun Jul 3 05:13:01 EDT 2016

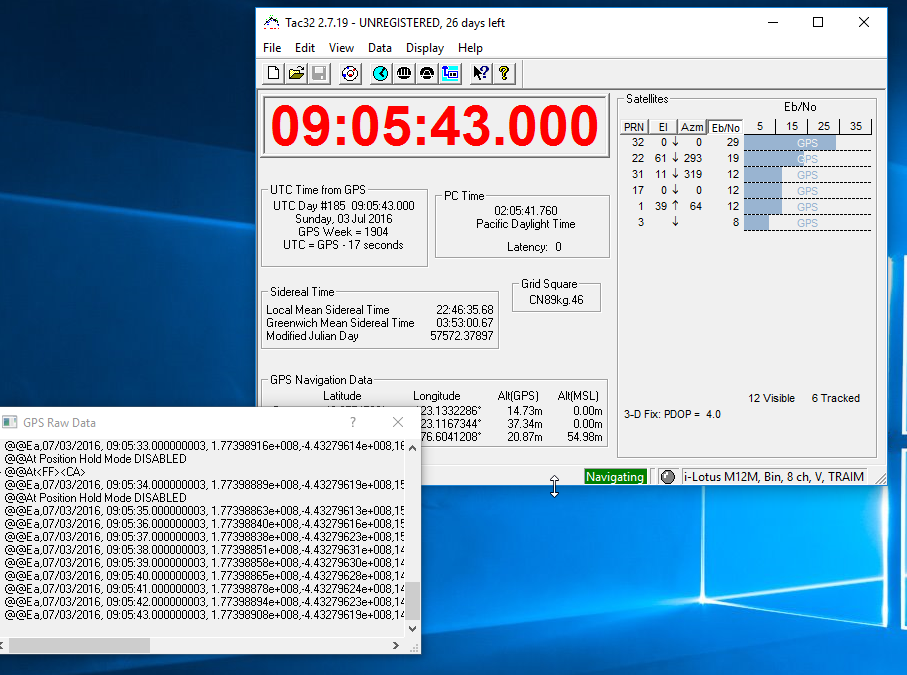

Thanks everyone with the files and tips to get this thing working. Turns out there was a cold joint on the pin header on the pin header. Appears the RXD line was not actually receiving data TU60 even thought the led on the RS232 converter board was blinking away showing data was being sent. Managed to even get it display data on Tac32.


-=Bryan=-

> To: time-nuts at febo.com
> From: goetz at g-romahn.de
> Date: Wed, 29 Jun 2016 16:47:55 +0200
> Subject: Re: [time-nuts] TU60-D120-131 Specs....?
>
> may be this zip-file from James Miller helps to set up the Jupiter properly:
> http://www.jrmiller.demon.co.uk/projects/ministd/jupcom.zip
> Götz
>
>
> Am 29.06.2016 um 10:45 schrieb Bryan _:
> >
> >
> >
> > Sorry to be so dense on this but doesn't the unit just default to the Jupiter-T command set on power up. I should be able to just enter @@Cj and receive the (manufacturer name, model, serial number and software revision ) shouldn't I?
> >
> >
> > -=Bryan=-
> >
> >> From: holrum at hotmail.com
> >> To: time-nuts at febo.com
> >> Date: Wed, 29 Jun 2016 02:42:50 +0000
> >> Subject: [time-nuts] TU60-D120-131 Specs....?
> >>
> >> "@ @ W b 0x01 cksum 0x0D 0x0A"  will switch from Motorola mode to Zodiac mode.  The checksum is the XOR of all bytes after the @@ and before the cksum byte.  The 0x?? values represent binary bytes.  The spaces are for clarity and are not sent.
> >> _______________________________________________
> >> time-nuts mailing list -- time-nuts at febo.com
> >> To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> >> and follow the instructions there.
> >
> >
> > _______________________________________________
> > time-nuts mailing list -- time-nuts at febo.com
> > To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> > and follow the instructions there.
> >
>
> --
> Götz Romahn
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: 2016-07-03 02_05_42-Microsoft Edge.png
Type: image/png
Size: 198377 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160703/11b92128/attachment-0001.png>
