[time-nuts] High rate, high precision/accuracy time interval counter methods

Bruce Griffiths bruce.griffiths at xtra.co.nz
Sun May 8 23:35:46 EDT 2016

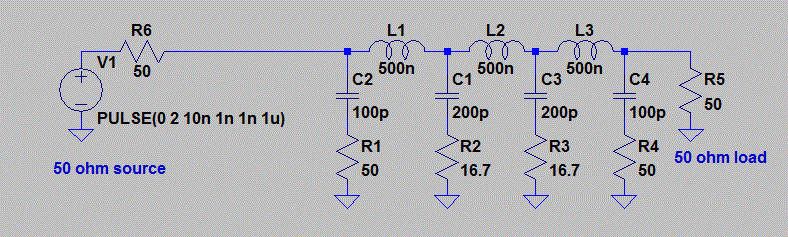

Another option is to use a low pass filter to increase the transition times of the signal to be timestamped and use a pipelined ADC to sample the filter output.Perhaps something like the attached filter derived from:
http://bears.ucsb.edu/rad/pubs/conference/MTT_S_2004.pdf
May be effective in that it has near Gaussian response with relatively low out of band SWR.

Bruce

    On Monday, 9 May 2016 3:01 PM, David <davidwhess at gmail.com> wrote:


 How much will dielectric absorption in the capacitor affect the
accuracy of the result with such a high conversion rate?  I am used to
dealing with it on much longer time scales and higher resolutions.

On Mon, 9 May 2016 01:08:05 +0200, you wrote:

>Am 08.05.2016 um 21:53 schrieb Attila Kinali:
>...
>
>Maybe I was too short. We have control over the charging current source,
>and when we switch it off, the status quo is kept. Then when the ADC is
>done,
>we can simply short the capacitor in the next clock/s to prepare for the
>next cycle.
>
>
>Attilla, we could discuss that on a sunny evening in Saarbrücken in a
>beer garden if you like. The season starts :-)
>
>regards, Gerhard
>_______________________________________________
>time-nuts mailing list -- time-nuts at febo.com
>To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
>and follow the instructions there.
_______________________________________________
time-nuts mailing list -- time-nuts at febo.com
To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
and follow the instructions there.



-------------- next part --------------
A non-text attachment was scrubbed...
Name: BreitbarthLPF.GIF
Type: image/gif
Size: 48753 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160509/dbd3af32/attachment-0001.gif>
