[time-nuts] Last Call Group Buy Ublox LEA-6T
EWKehren at aol.com
EWKehren at aol.com
Wed May 18 12:57:58 EDT 2016

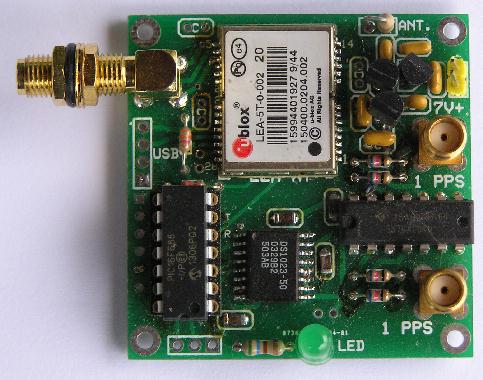

Attached is a picture of our ublox board that we plan on making available
to time-nuts once we have the FE 5680/50 GPSDO under control so it does not
wipe out under any circumstances the memory. We will if any one is
interested in a board also make the board only available for less than $ 10
shipping and handling included.
With out saw tooth error correction I see no reason to get a T version. We
are also debating what delay chip to use. Our first tests are with a 500 ps
DS chip because I did have them, but 200 ps will work with a T5 or 6. We
are also considering using two Micrel SY 89295UTG in series with 10 ps
resolution, but with the limitation of a single frequency GPS receiver and
ionosphere delay variations one has to ask does it make sense? Any thoughts on
that subject?
In a message dated 5/18/2016 2:00:35 A.M. Eastern Daylight Time,
holrum at hotmail.com writes:
https://oshpark.com/shared_projects/8QR7ymk8
-------------- next part --------------
A non-text attachment was scrubbed...
Name: LEA-5T_time nut.jpg
Type: image/jpeg
Size: 65791 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160518/4f3c717b/attachment-0001.jpg>
