On 11/4/2016 1:35 PM, Wes wrote:
>
> Before synthesizers, I built a VFO for a homemade receiver using one of these
> cannibalized from a freq meter.
>
> Wes Stewart, N7WS

I guess this list allows attachments so here are some photos.

VFO_1.jpg shows an overall view.  There are two trimmers seen on the end frame
that line up with the holes in the cover.

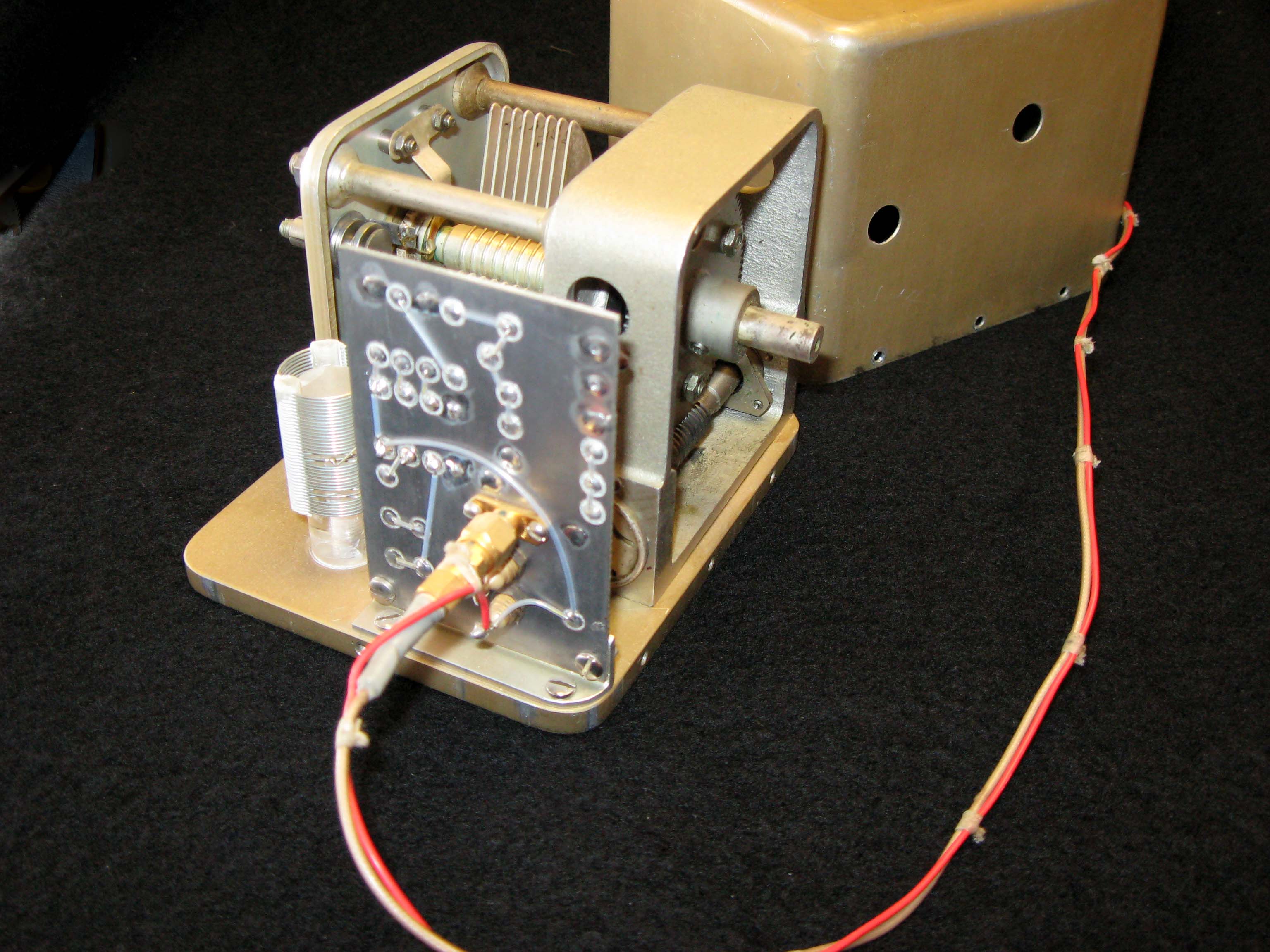

VFO_2.jpg is another view with the temperature compensating trimmer just visible
behind the circuit card.

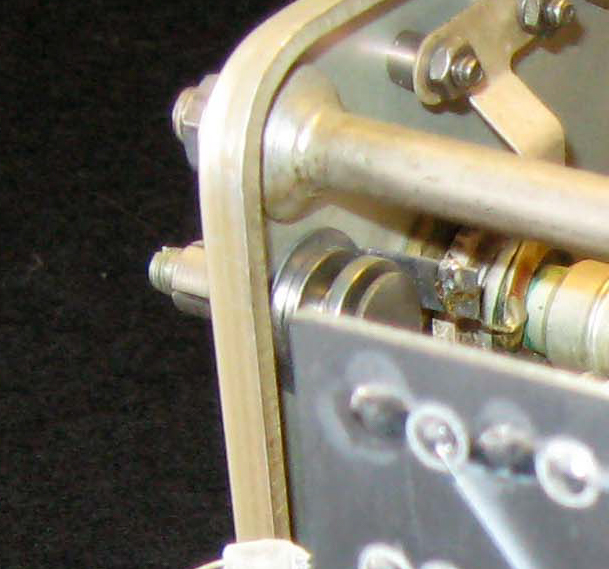

VFO_2a.jpg is a closer view.
