Yo Ilia!
On Thu, 20 Oct 2016 06:15:39 +0000
Ilia Platone <info at iliaplatone.com> wrote:
> I am trying to take some timestamps of events on a GPIO using an ARM
> SBC, and noticed that the kernel linux can be interfaced to a PPS
> signal, wanted to sync another GPIO to a GPS receiver for time
> reference.
You should check out the gpsd time howto, and ntpsec.
http://www.catb.org/gpsd/gpsd-time-service-howto.html
https://www.ntpsec.org
> I need to know how much precise this system can be. How
> much resolution can I obtain with a cheap receiver (maximum
> quantization frequency)?
On average, on a RasPi 3, you can expect about
> Formulas are well accepted.
How about a graph, or two? See attached. From the histogram, I suspect the
granularity is about 200 nano sec. From the offset graph you can
see how the offset jumps.
Here is the offset data on PPS v. the system clock:
Percentiles......
Min 1% 5% 50% 95% 99% Max
-21.645 -2.587 -0.834 -0.020 0.991 0.991 13.557 µs
Ranges......
90% 95% StdDev Mean Units
1.825 5.318 0.850 -0.006 µs
Or see a lot more live graphs here: https://pi4.rellim.com/day/
RGDS
GARY
---------------------------------------------------------------------------
Gary E. Miller Rellim 109 NW Wilmington Ave., Suite E, Bend, OR 97703
gem at rellim.com Tel:+1 541 382 8588
-------------- next part --------------
A non-text attachment was scrubbed...

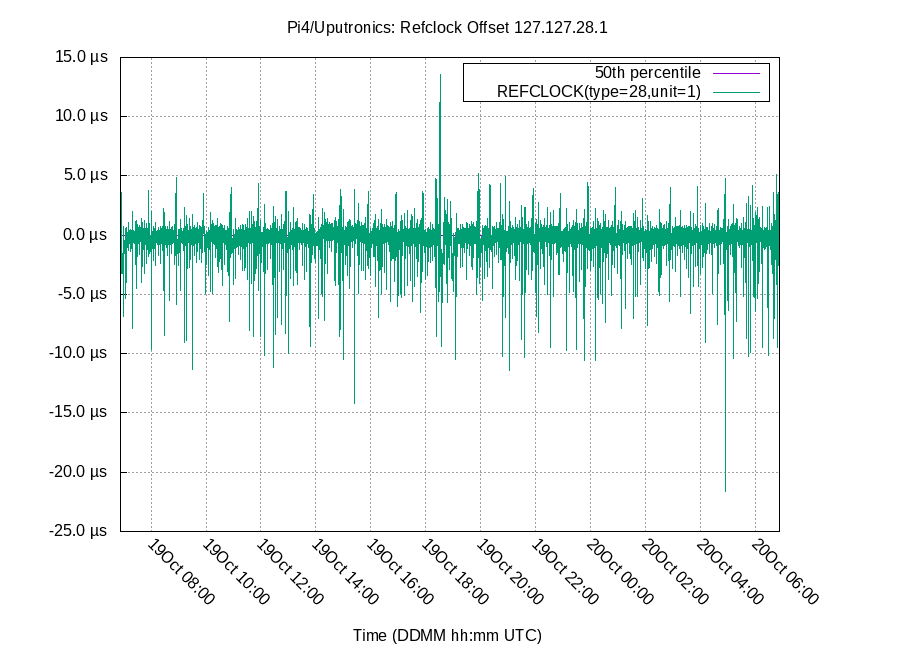

Name: peer-offset-127.127.28.1.png
Type: image/png
Size: 15989 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20161020/6d1f45c7/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

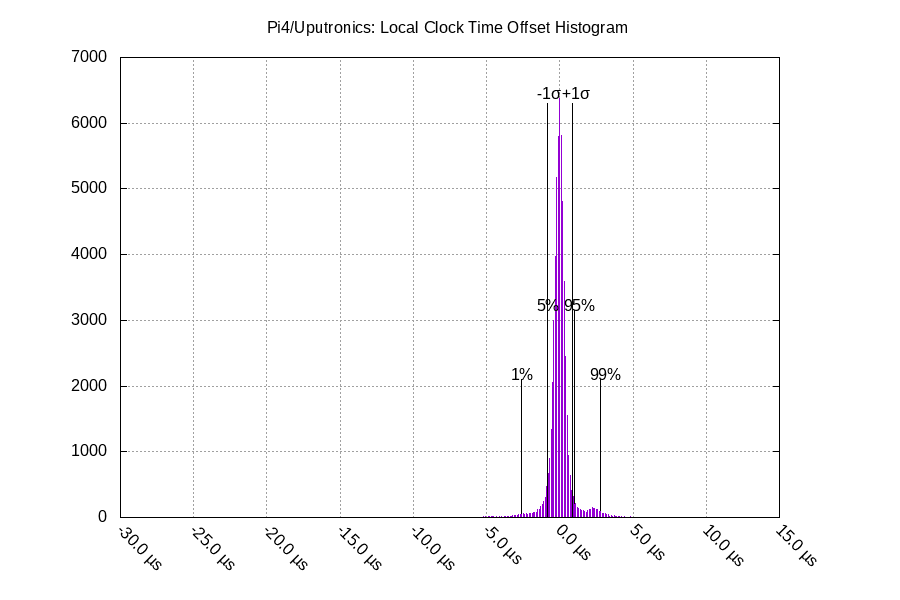

Name: local-offset-histogram.png
