[time-nuts] Thunderbolt spurs on 10MHz output at 100Hz and 200Hz from signal.
Dan Rae
danrae at verizon.net
Wed Sep 21 11:46:54 EDT 2016
On 9/21/2016 8:01 AM, David C. Partridge wrote:
> Looks like all I've managed to do is measure the baseline noise of the analyser. Ho-hum looks like I need something a *lot* quieter to do these measurements.
>
Indeed Dave, yes. I made the same mistake a few years ago when I tried
to compare the results of three different DDS clocks on the output of my
homebrew transceiver DDS LO using a 3585A spectrum analyser and John's
program. It took me a while to figure out why they were identical and
then the penny dropped that I was just measuring the 3585A...
The plot of the three thunderbolts I sent before using my -hp- phase
noise system is interesting in that the white plot was from the Tbolt I
keep on the bench to run all the stuff there, and it uses the switch
mode power supply that came with the TAPR ones, built into an Extron
distribution amp case. All the spurs that are shown with dotted lines
aren't all spurious, most are probably real. The other two are from
units with linear supplies and are significantly improved.
Most older phase noise systems use some kind of low noise oscillator for
reference, mixing the signal under test down to AF and going from there
with low noise amps and then the actual measurement. Wenzel has a very
good application note describing a system that can be copied in the home
lab.

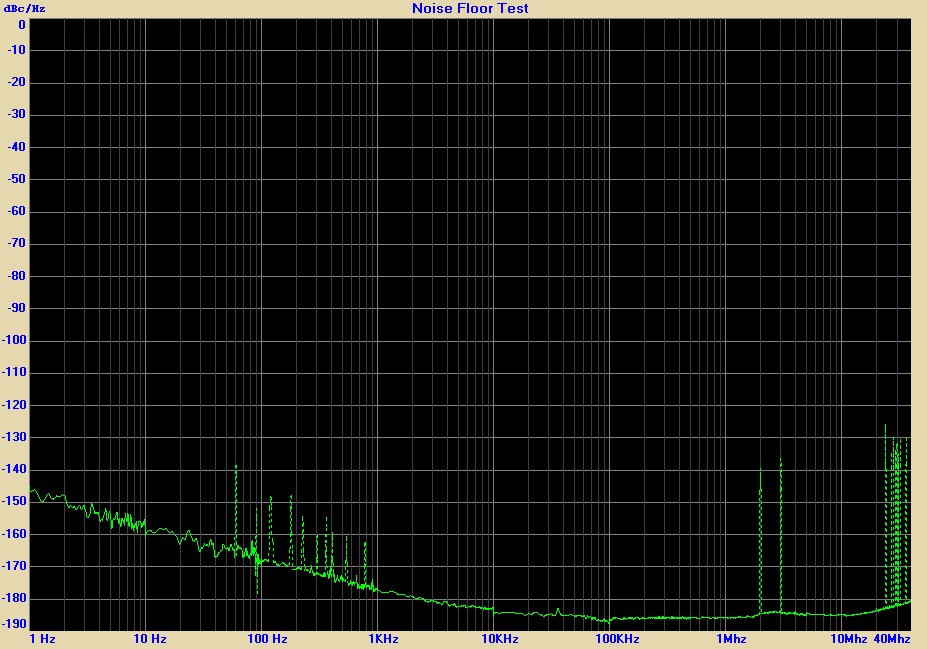

I attach a plot of my -hp- 3048A system noise floor showing what levels
can be achieved with twenty year old technology. The spurs the system
shows dotted may not be real. The modern system John Miles designed can
no doubt do better and in about one hundredth of the volume, but is a
little more expensive :^)
Dan
-------------- next part --------------
A non-text attachment was scrubbed...
Name: noisefloor.png
Type: image/png
Size: 54927 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160921/fb4a2474/attachment-0001.png>
