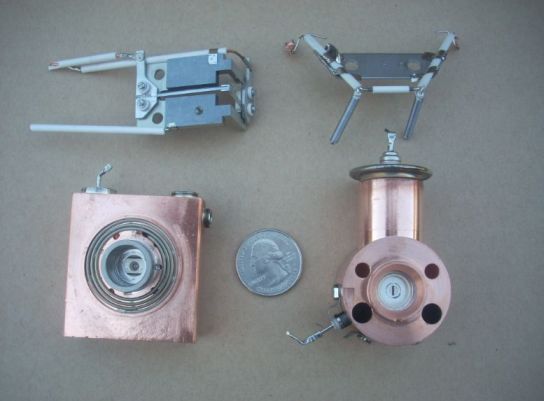

Attached is a PIX showing (CW from top left) the:
>ionizer filament
>Oven filaments (STD oven)
>standard oven assy
>high perm oven assy

The HiPerf oven filament is the sealed spiral wound tube on the face of
the oven.

The posts on the top edge of the ovens is the connection to burn a hole
in the burst disc to release the Cesium once the tube is pumped down..

Cheers,

Corby
