[time-nuts] Three-cornered hat on timelab?

Angus not.again at btinternet.com
Sat Apr 29 17:37:44 EDT 2017


Hi Bob,

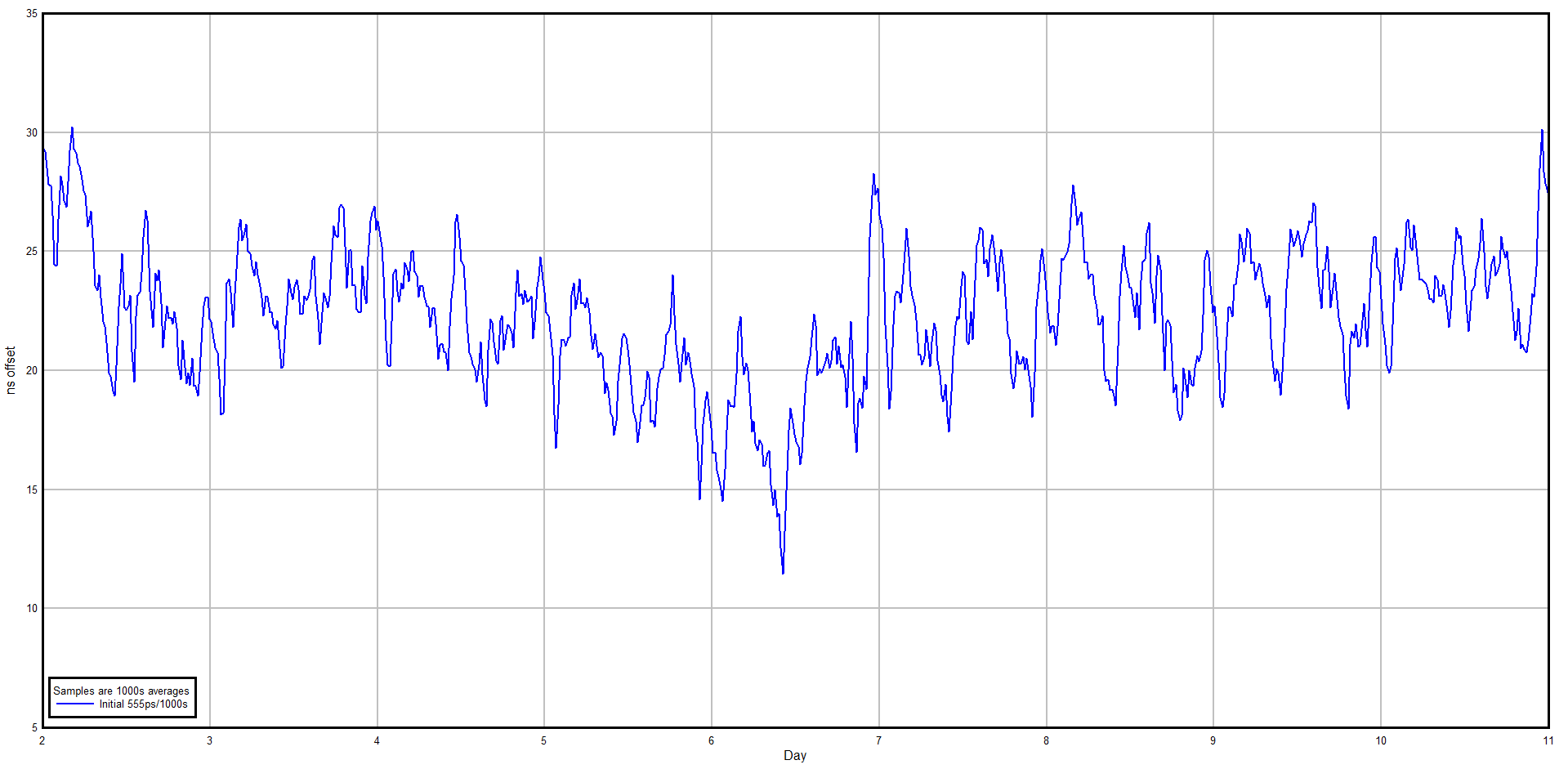

This is a phase plot of a rubidium to an M12 from a test that I did
back in 2008. The offset and ageing have been removed, but there is
still a bit of wander.
As with your plot, constellation related issues appear the most
obvious. Peak to peak is fairly similar too.

Angus.


On Thu, 27 Apr 2017 16:48:37 +0000 (UTC), you wrote:

>Hi Magnus,
>Try as I might, the weather and the local power company had other ideas about my long term capture.  I'm running everything but the 5370 from a UPS.  I guess I'm going to have to get batteries for my other UPS and run the 5370 from that.  A one second power loss was all it took to stop the test.
>
>Anyway, I did manage to get 376,238 points of data.  The data is captured on a 5370A.  The external clock input and the STOP channel are fed by the 10MHz from my PRS-45A.  The START channel is fed by the 10MHz from one of my GPSDOs.  The EXT channel is fed by the 1PPS from another of my GPSDO units.  "EXT ARM" is enabled.  So, essentially, at every 1PPS pulse, the phase difference between the two 10MHz feeds is captured.
>
>I've attached a screenshot of the phase plot which can also be found here:http://evoria.net/AE6RV/Timelab/Screenshot.png
>I've also made the timelab file (compressed by 7z) available here:
>http://evoria.net/AE6RV/Timelab/GFSvsCS.4.22.17.7z
>
>So, back to my question:  Where are the large ionospheric phase moves?  This question has been causing me doubt since I started on this project.  Or don't I still have enough data collected for this to happen?
>
>Bob
>
>-----------------------------------------------------------------
>AE6RV.com
>
>GFS GPSDO list:
>groups.yahoo.com/neo/groups/GFS-GPSDOs/info
>
>      From: Magnus Danielson <magnus at rubidium.dyndns.org>
> To: Bob Stewart <bob at evoria.net>; Discussion of precise time and frequency measurement <time-nuts at febo.com>
>Cc: magnus at rubidium.se
> Sent: Tuesday, April 18, 2017 1:09 AM
> Subject: Re: [time-nuts] Three-cornered hat on timelab?
>
>Hi Bob,
>
>That is a good solution indeed. Good luck with that measurement run!
>
>One of the fun stuff with Timelab is that you can walk by and check the
>developments. I've found that very useful for long measurements (as in
>hours and days).
>
>I prepared a cesium for one vendor, and initially they did not care so
>much, but then they saw more deviations between the receivers, so they
>wanted to sort it out, but discovered that they could not cancel out the
>common mode of GPS signals (and its shifts), so then firing up that
>cesium was the right thing. I remember writing support emails while
>waiting for the airplane in Madrid airport, happy that they was doing a
>first run for the right measurement reason. :)
>
>Cheers,
>Magnus
>
>On 04/18/2017 04:25 AM, Bob Stewart wrote:
>> Hi Magnus,
>> Today I started a long run against my PRS-45A.  Maybe this time I won't have a power outage.  I'll see what it tells me in a few days.
>> Bob
>
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Phase3.png
Type: image/png
Size: 21133 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170429/5b8e0ea2/attachment-0001.png>
