[time-nuts] Survey plot as art.

[Peter Reilley]

Try again;

Pete.


On 1/7/2017 12:54 PM, Peter Reilley wrote:
>
> This is the survey from my Trimble NTBW50AA.   It looks like some
> bacteria floating around.
>
> The curious thing are the excursions.   Rather than being noise like,
> some follow a distinct
> path.   But this is only over a few seconds so it seems unlikely that
> they are caused by
> weather conditions.   The survey from my Resolution T taken at the
> same time and using
> the same antenna (with a splitter) shows much less orderly excursions
> and is more noise
> like.
>
>

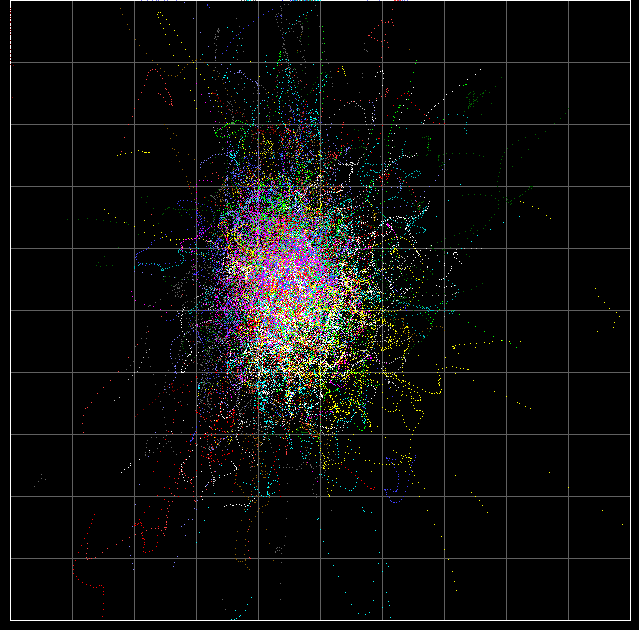

> Trimble NTBW50AA survey.
>
>
> Resolution T survey
>
>
> Pete.
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Survey_NTBW50AA.gif
Type: image/gif
Size: 37675 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170107/5637762d/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Survey_ResT.gif
Type: image/gif
Size: 46485 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170107/5637762d/attachment-0003.gif>
