[time-nuts] TS2100: List of root commands?

Gerhard Wittreich gerhard at wittreich.org
Thu Apr 5 19:06:38 EDT 2018


Bruce,

The model originally spec'd for the TS-2100 MTI 240-0530-D
*.*

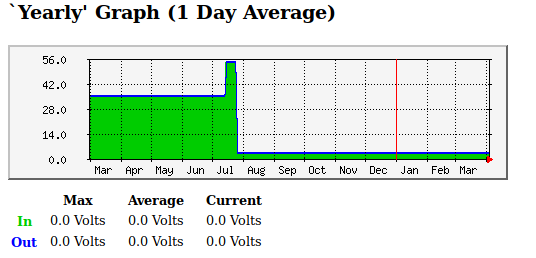

Here is the MRTG trace. Had a power failure in July and it settled from a
previous 36 to a new 3.  These are not absolute values but offset by 47640
to amplify the scale or changes of 1 in 65535 would not be visible.
Therefore, the current register reads 47643.






On Thu, Apr 5, 2018 at 12:36 PM, ew via time-nuts <time-nuts at febo.com>
wrote:

> No control voltage change of an OCXO in a year  is amazing. What is the
> OCXO
> Bert Kehren
>
> In a message dated 4/5/2018 10:52:11 AM Eastern Standard Time,
> gerhard at wittreich.org writes:
>
>
>  Bruce,
>
> The link Azelio Boriani shared is the source I used when doing the same
> project. Please, post your results. MIne has been running for several years
> now without any issues. I track the OCXO control voltage register in the
> 2100. It has 65535 steps and over long periods (1 year) that control
> voltage hasn't changed. At the very beginning, it did take about 30-60 days
> for the control voltage to settle down. The only time I get a change is in
> rare situations where the unit is powered down. When it restarts it may
> settle into a different control voltage. I have the unit on a UPS and have
> backup generator for the house.
>
> Gerhard R Wittreich, P.E.
>
> On Wed, Apr 4, 2018 at 8:29 PM, Bruce Lane <kyrrin at bluefeathertech.com>
> wrote:
>
> > Fellow time-tickers,
> >
> > I just finished conversion of one of my TS2100's to OCXO, and I'm
> > now
> > in the process of tweaking the EEPROM settings.
> >
> > During my research, I came across (and, foolishly, didn't bookmark)
> > either a web page or a mailing list post which listed the 'root eng'
> > commands, and exactly how to enter them. I've been successful with 'root
> > eng ee gain' and 'root eng ee filter,' but I can't seem to get the
> > syntax down to set the D/A value.
> >
> > Does this sound at all familiar?
> >
> > Thanks much.
> >
> > --
> > ---
> > Bruce Lane, ARS KC7GR
> > http://www.bluefeathertech.com
> > kyrrin (at) bluefeathertech dot com
> > "Quando Omni Flunkus Moritati" (Red Green)
> > _______________________________________________
> > time-nuts mailing list -- time-nuts at febo.com
> > To unsubscribe, go to https://www.febo.com/cgi-bin/
> > mailman/listinfo/time-nuts
> > and follow the instructions there.
> >
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/
> mailman/listinfo/time-nuts
> and follow the instructions there.
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/
> mailman/listinfo/time-nuts
> and follow the instructions there.
>
