[time-nuts] more interesting GPS RTL-SDR stuff

jimlux jimlux at earthlink.net
Sat Apr 14 13:41:35 EDT 2018


So, the whole "quik n easy" hook a cap between 1pps and RF input is
looking less wonderful.

I wired 1k and 100pF in series from the 1pps to the 50 ohm input.  (when
I first tried it, it was just some wire twisted together.. maybe 10 pF).

Why those values? I found the 100pF caps first.

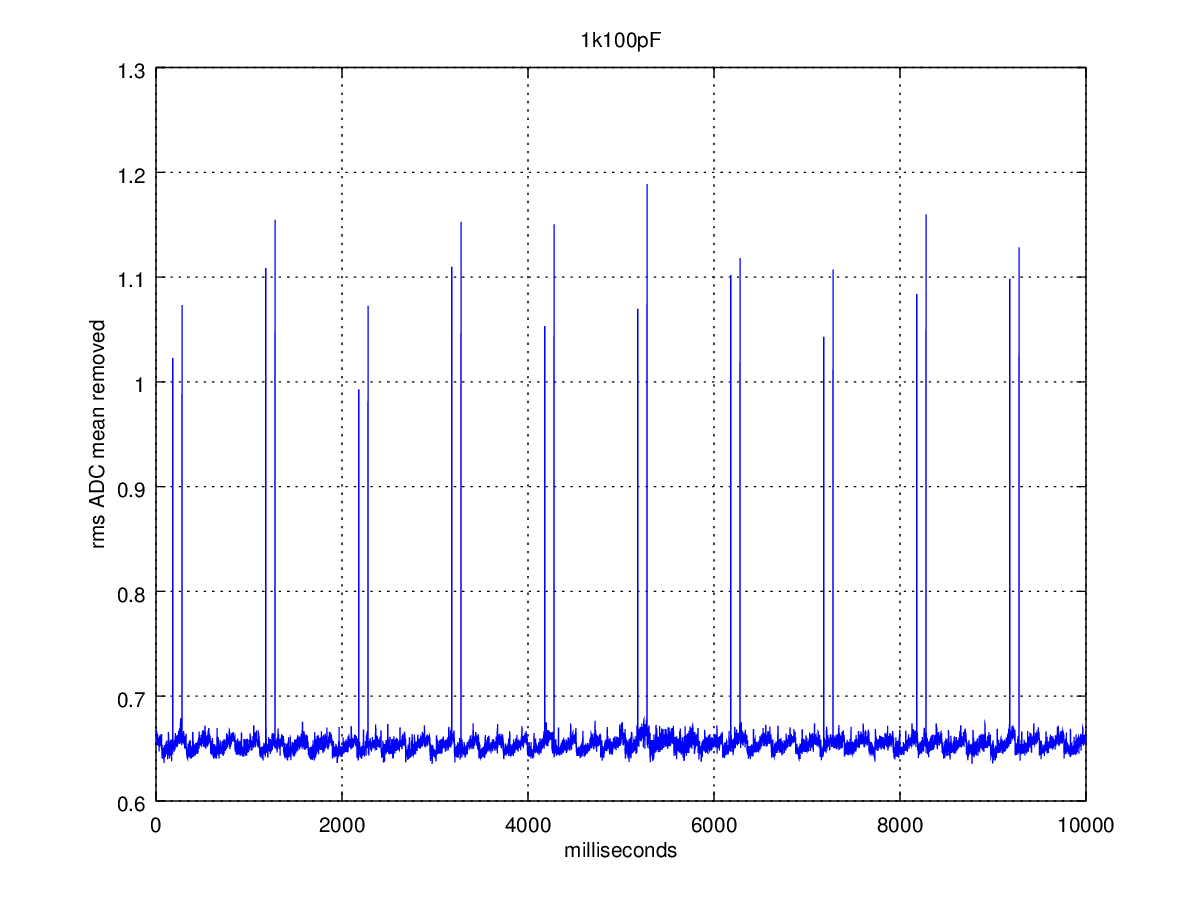

In any case, when I digitize with the RTL tuned low (5 Mhz)- I get two
spikes - one for rising, one for falling.

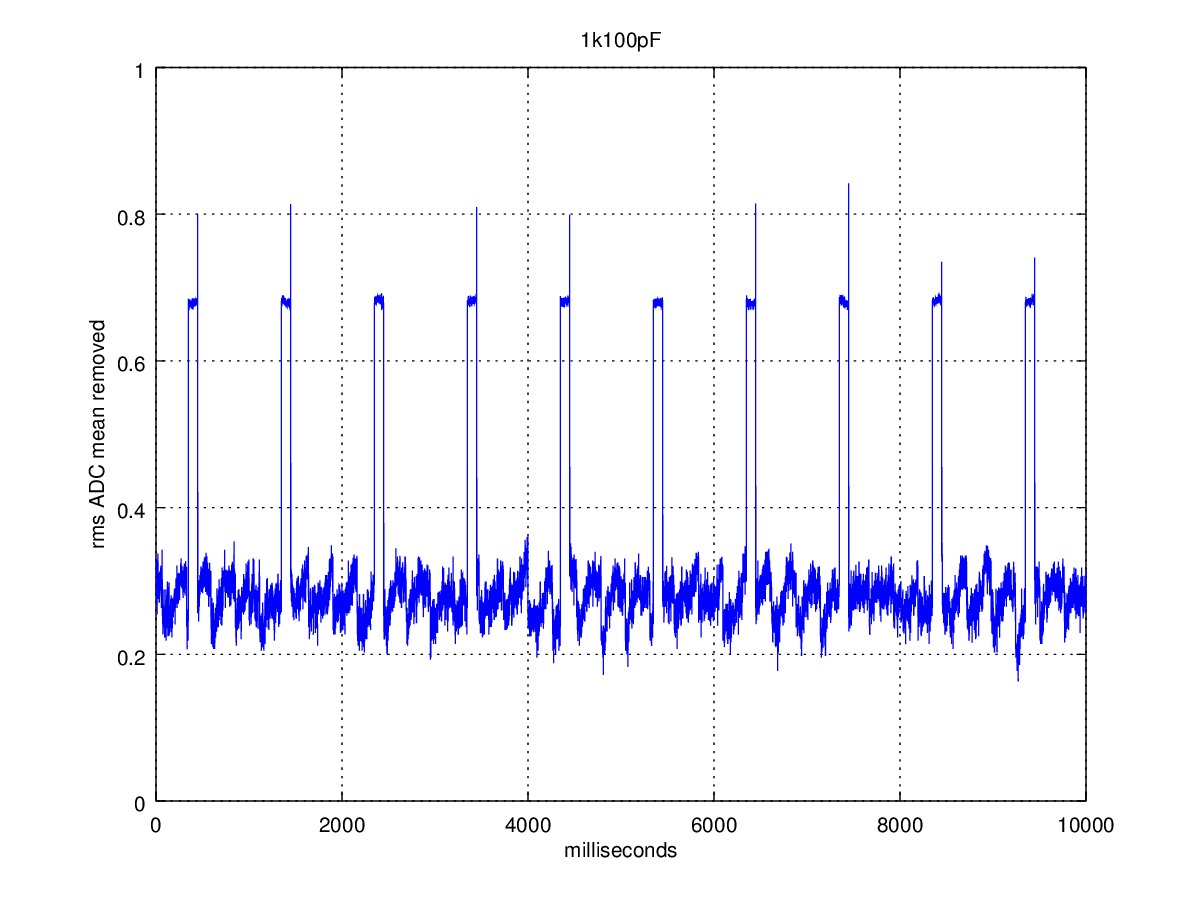

BUT, when I tuned the RTL up band (say, to 15 MHz), I started to get a
more "flat topped pulse" in my total power detection (rms over 1
millisecond).

How odd?

Turns out, when the 1pps is *high*, it's also kind of noisy, and that
couples into the RTL through the larger capacitor.

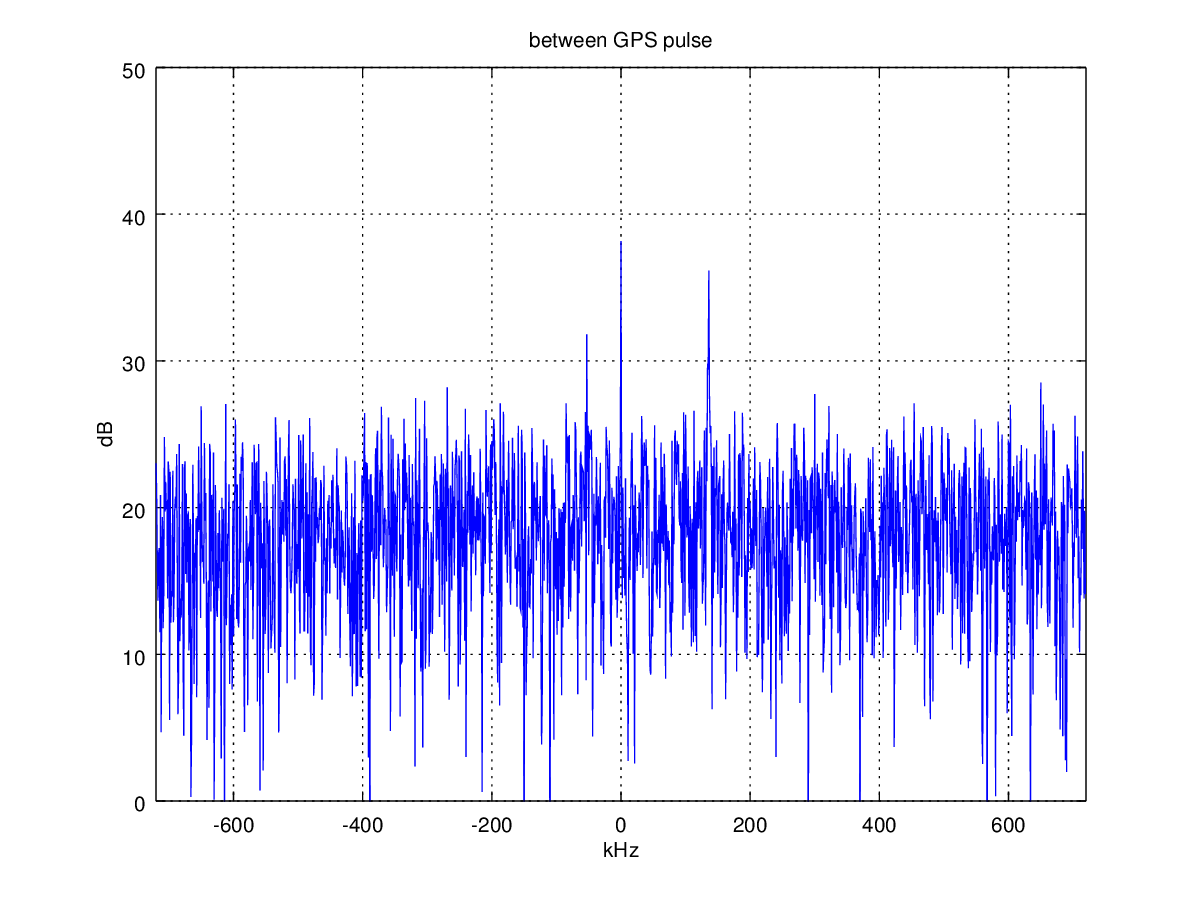

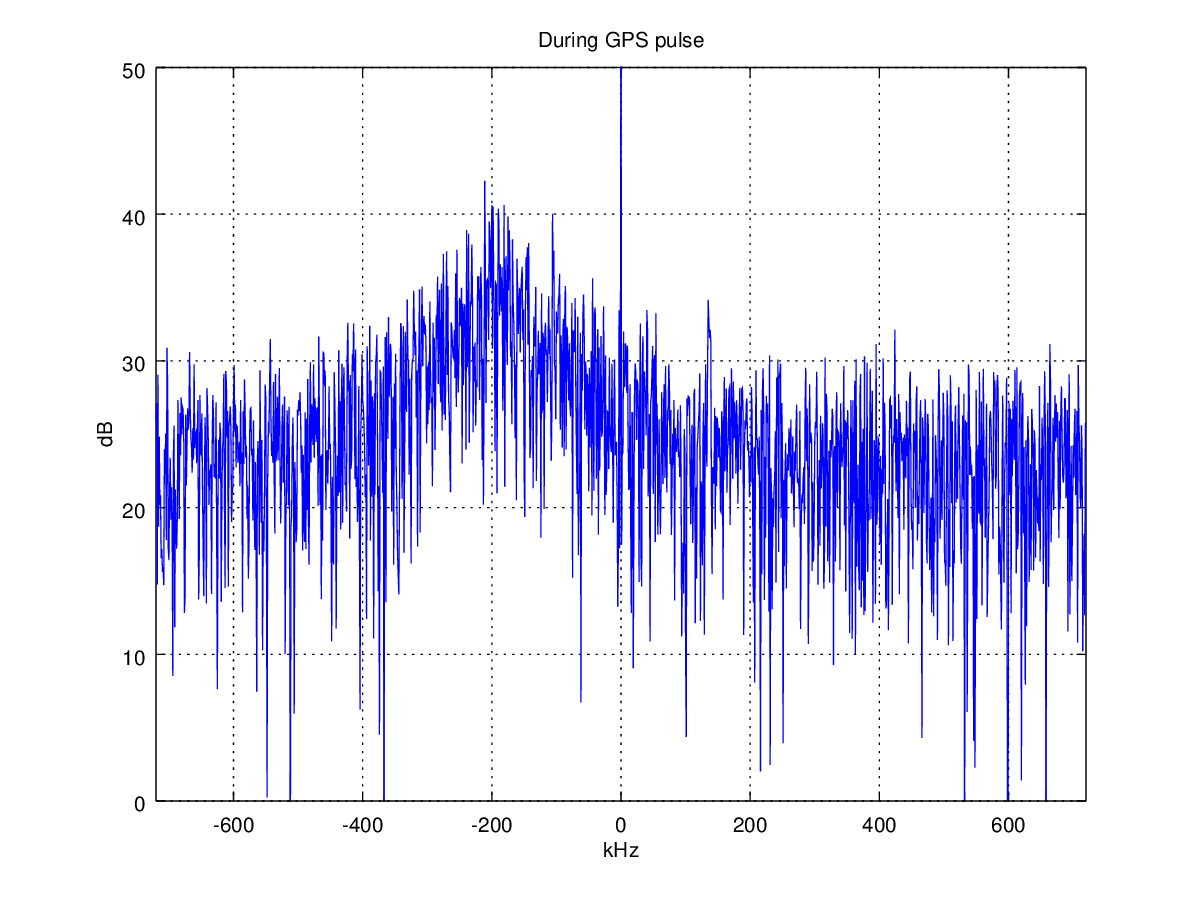

See attached "betweenpulse" and "duringpulse" spectra - I happened to
run this one at 1.44 MHz sample rate so it's +/- 720 kHz.
I have no idea if 14.8 MHz is some sort of significant frequency inside
the uBlox, or if it's just grounding the wire which shunts noise that's
being picked up.


I suppose I could fool around and find a capacitance that couples just
the "edge" through, but not the noise during the "on time". or some sort
of more complex circuit.

Or, I could build some sort of cal burst generator.

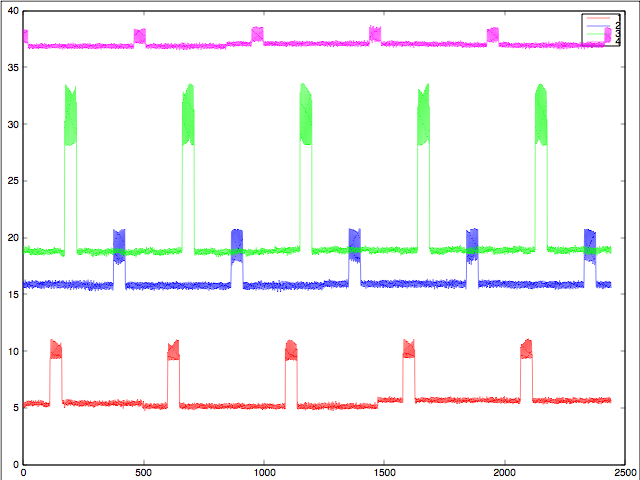

But I think what I'll do is go back to the original plan of radiating a
pilot tone with some modulation to all channels.. (see pulses3.png)
-------------- next part --------------
A non-text attachment was scrubbed...
Name: duringpulse.png
Type: image/png
Size: 51955 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180414/181153f1/attachment-0005.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: betweenpulse.png
Type: image/png
Size: 50610 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180414/181153f1/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 1k100pF15Mhz.png
Type: image/png
Size: 40656 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180414/181153f1/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 1k100pF5Mhz.png
Type: image/png
Size: 38939 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180414/181153f1/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pulses3.png
Type: image/png
Size: 58182 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180414/181153f1/attachment-0009.png>
