[time-nuts] HP 8642 line

Ulrich Rohde ka2weu at aol.com
Tue Jan 23 19:02:55 EST 2018

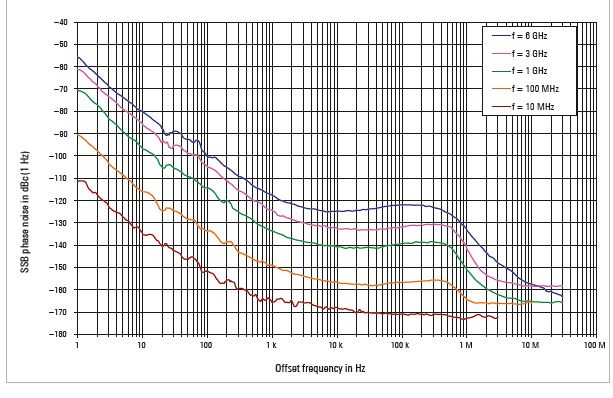

Thank you very much, HP did not specify the 10 and 100 MHz values.... I can measure but don't have the generator..state of the art attached. Thanks, Ulrich
In a message dated 1/23/2018 6:48:52 PM Eastern Standard Time, marklgoldberg at gmail.com writes:

I do not have great equipment to do the measurement but it is at least this good at 10 MHz as measured on one of my 8642As. I can't measure phase noise at 30 or 100 MHz.
Offset(Hz)1020501002005001,0002,0005,00010,00020,00050,000100,0001,000,000Phase Noise(dBc/Hz)-96.9-103.0-106.9-109.7-117.7-128.4-136.4-140.1-143.1-144.9-145.6-145.7-146.2-146.6

On Tue, Jan 23, 2018 at 4:21 PM, Ulrich Rohde via time-nuts <time-nuts at febo.com> wrote:
 Who has a 10 and 30 and 100 MHz phase noise plot from 1 Hz to 1 MHz ? Thanks, Ulrich N1UL
 time-nuts mailing list -- time-nuts at febo.com
 To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
 and follow the instructions there.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: SMA_100A.JPG
Type: image/jpeg
Size: 77740 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180123/4857a110/attachment-0001.jpe>
