[time-nuts] Commercially available empty ovens for oscillator testing?

[Bernd Neubig]

Hi Julien,

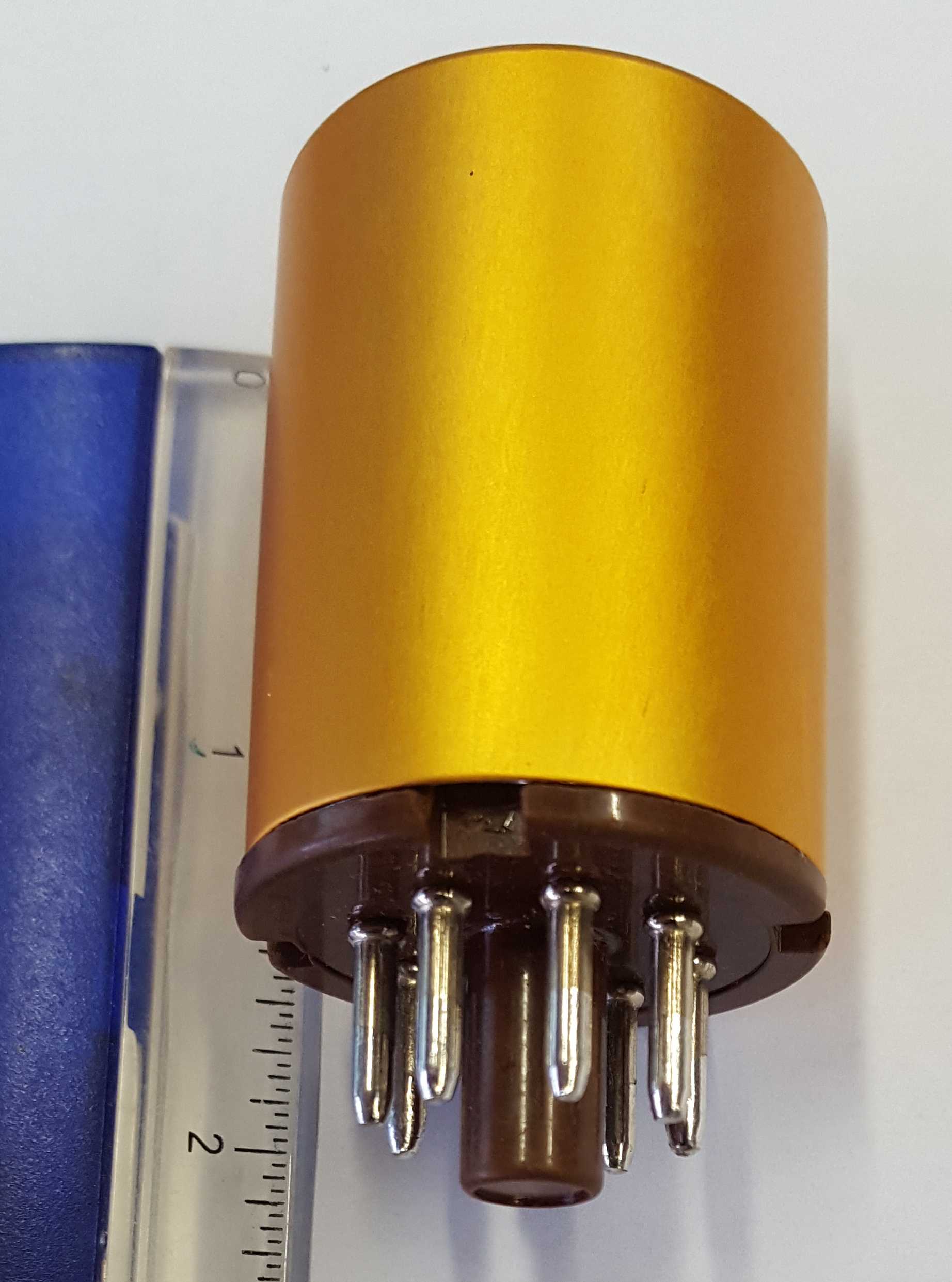

I have a few vintage thermostats from the early 70's manufactured by Northern Engineering Laboratories those days. They come in a cylindrical housing with an "octal" tube socket. The temperature control is done by a bi-metallic switch to +75 degC nominal. Supply voltage is  6V. See attached photos. Inside are two sockets suitable for the good old HC-6/U size crystals (12.35 mm lead spacing)
I have measured the response at one sample giving the following results:
Power consumption < 6 W
after warm-up : 2.2 W
If isolated with styrofoam: 1.5 W
Switch-on/off after warming up 12 sec/22 sec
temperature max-min after warm-up: 0.3degC peak-peak

If such a device is suitable for your needs, let me know by direct private mail

Best regards
Bernd  DK1AG



-----Ursprüngliche Nachricht-----
Von: time-nuts [mailto:time-nuts-bounces at febo.com] Im Auftrag von Julien Goodwin
Gesendet: Samstag, 12. Mai 2018 18:55
An: TIme Nuts <time-nuts at febo.com>
Betreff: [time-nuts] Commercially available empty ovens for oscillator testing?

Does anyone know if there's anyone who sells essentially just the oven & casing for an OCXO on its own?

I have a project for which I'm currently using a VCTCXO, but I'm wondering if enclosing a plain VCXO, plus the control DAC & voltage reference in a single small oven would end up more stable, and possibly not even much more expensive.
_______________________________________________
time-nuts mailing list -- time-nuts at febo.com To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
and follow the instructions there.
-------------- next part --------------
A non-text attachment was scrubbed...

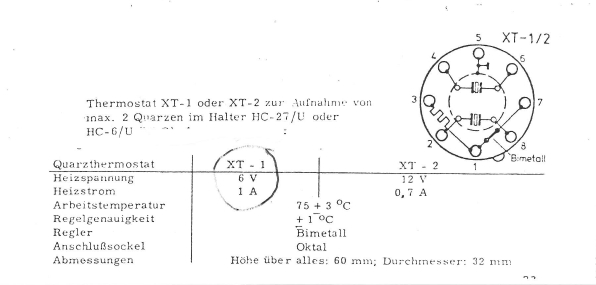

Name: NE_Thermostate_DS.jpg
Type: image/jpeg
Size: 52029 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180514/811115f8/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Northern Thermostate.jpg
Type: image/jpeg
Size: 175290 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180514/811115f8/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: NE_box.jpg
Type: image/jpeg
Size: 406807 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180514/811115f8/attachment-0005.jpg>
