[time-nuts] 10MHz Rubidium reference source for frequency counter
john at miles.io
Sun Oct 26 21:51:09 UTC 2014
> I know what your next question will be, "I see that these rubidium
> oscillators all can be adjusted over a range that falls on both sides of
> 10MHz. What should I use as a calibration source to adjust my rubidium
> oscillator?" Then you think "If I have this 10MHz calibration source, why
> not just run the frequency counter off that and not bother with the rubidium?"
> OK there is good reason to use Rb. It warms up fast, it remains stable for
> a long time. It is self contained and compact and does not rely on any
> external signals.

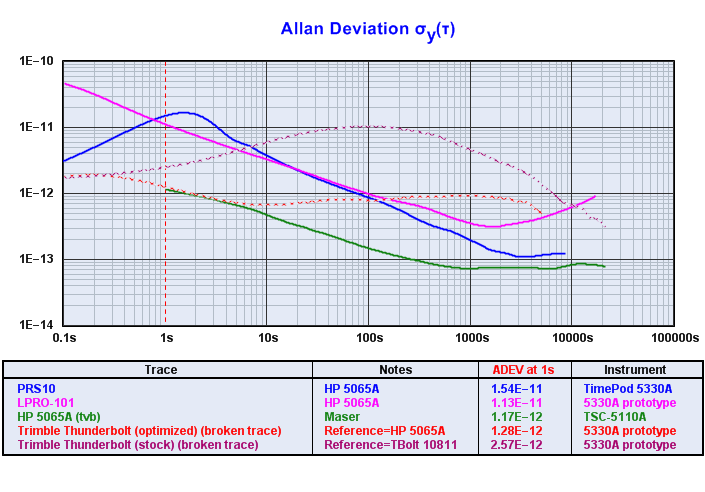

You really have to tweak the heck out of a GPSDO to achieve medium-term stability comparable to that of a cheap rubidium (see attached comparison against typical and exceptional GPSDOs.) Of course, at taus greater than several hours the GPSDO will eventually win.
-- john, KE5FX
Miles Design LLC
-------------- next part --------------
A non-text attachment was scrubbed...
Size: 45625 bytes
Desc: not available
