[time-nuts] Some MADEV Results

[Jim Schatzman]

Time Nuts-

I attached a few plots of ensemble MADEV results for three sets of oscillators, measured in my lab with the ensemble method, posted here for general information.

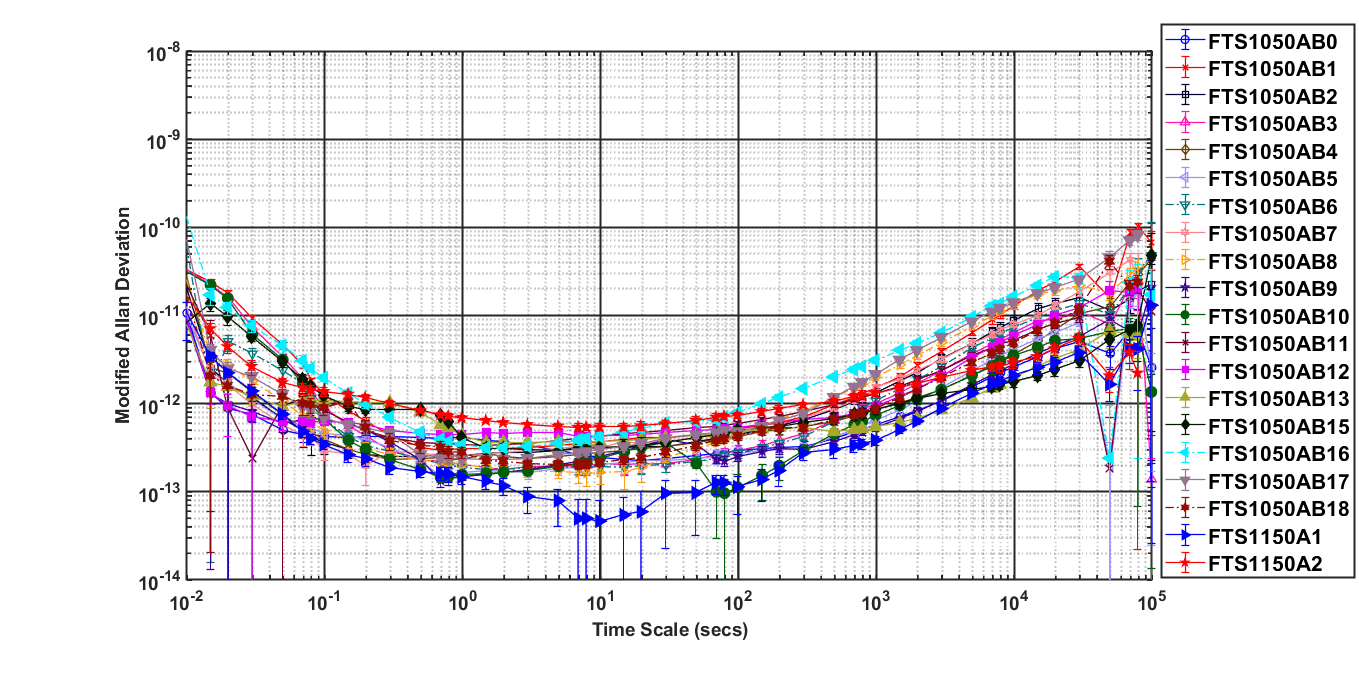

a) FTS1050A and FTS1150A oscillators. The two FTS1150A units are the best and worst of this bunch. Note that FTS1150A1 has a BVA oscillator.

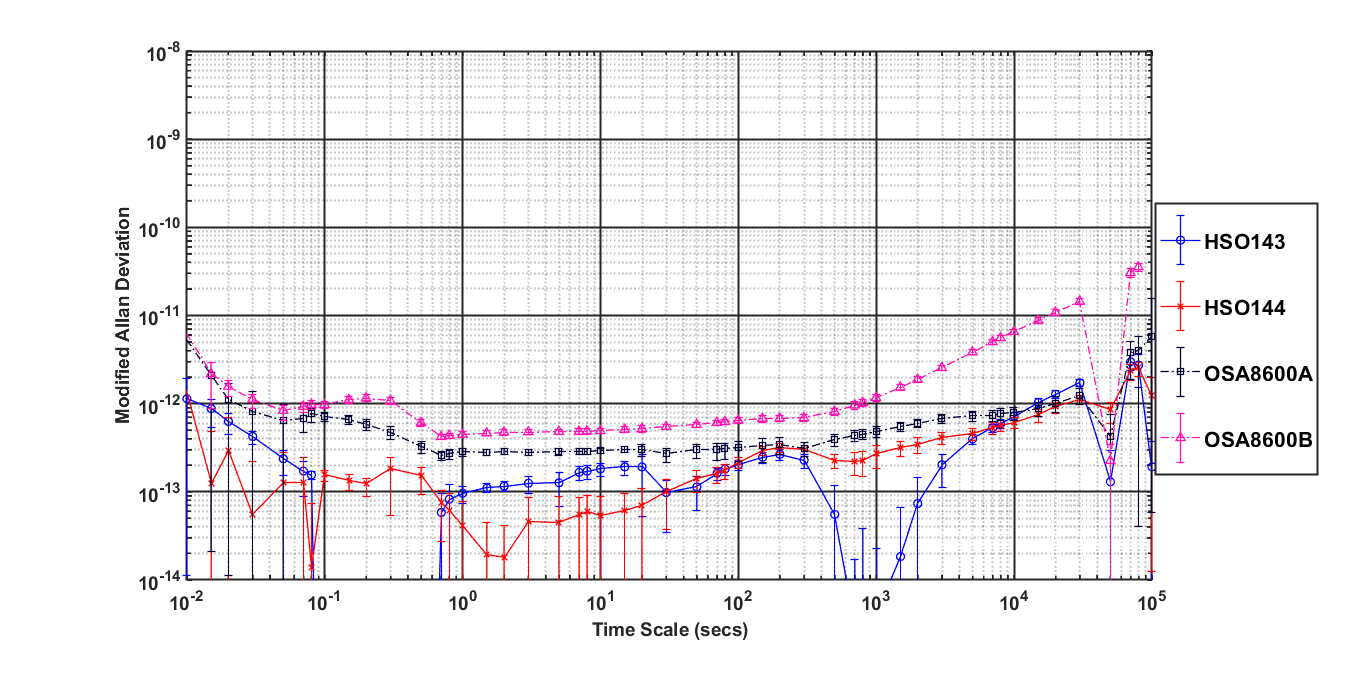

b) HSO14 and OSA8600 oscillators.  It is evident that my testing is pushing the limits of what is measurable with the ensemble method for the HSO14 units. If only I had a few more...

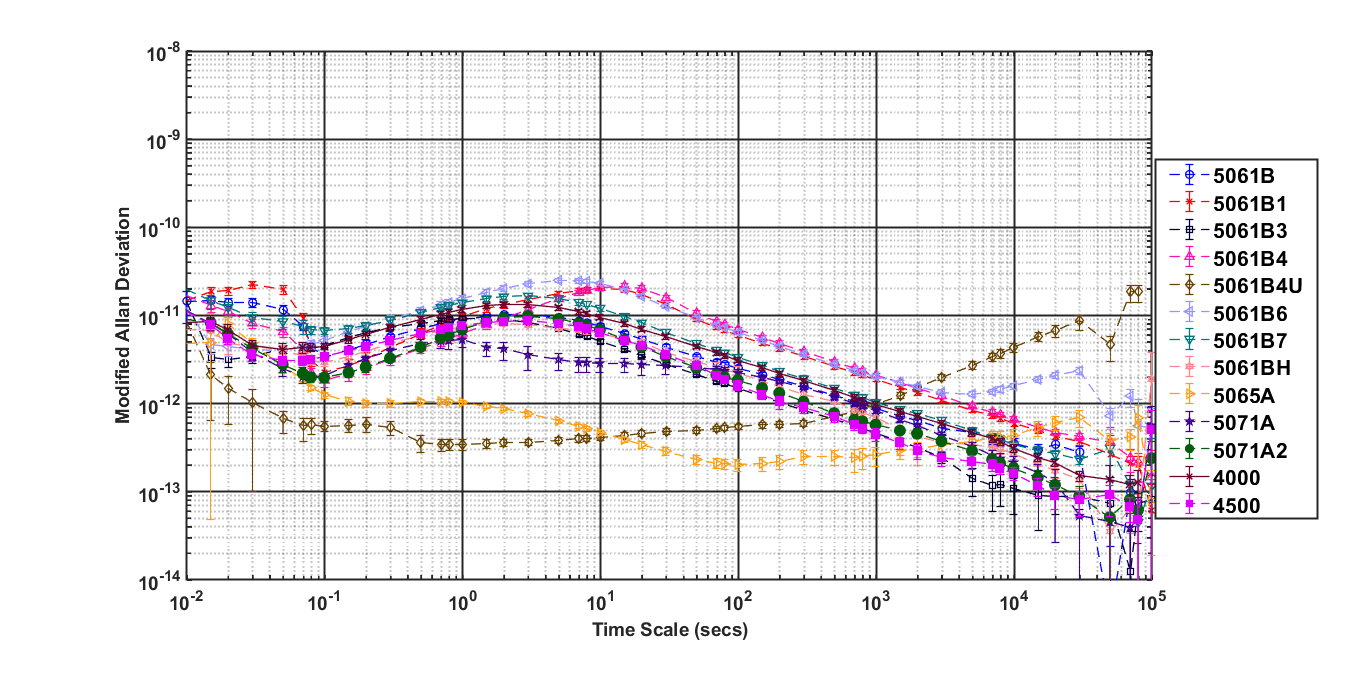

c) Cesium beam oscillators plus one 5065A rubidium. 5061B4U is the 5061B4 unit tested with the cesium beam turned off. 5061B6 is nominally working but the MADEV curves suggests that it is not locking well. I am still trying to determine why.

Jim
