[time-nuts] Measurement and correction of non-linearity of a TDC

[Erik Kaashoek]

Is there someone on this list that has experience with the measurement
and correction of non-linearity of a TDC?
It appears the TDC's I'm using have at least two types of non linearity.
One seems to be related to the pulling by the clock used to create the
stop pulse.
The other is a small repeating non-linearity, every 54 steps of the the TDC

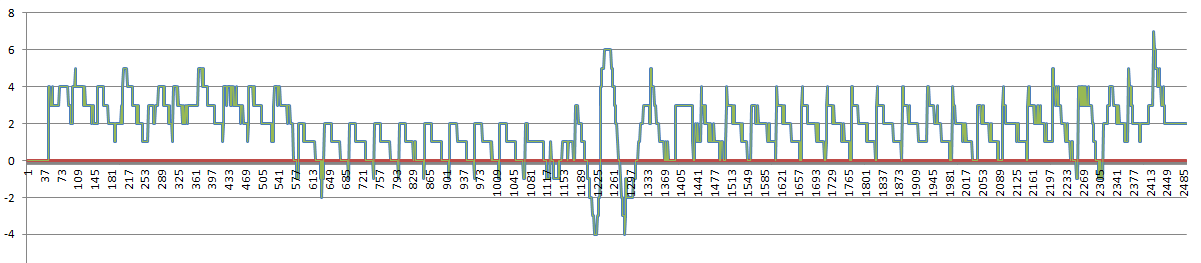

The attached graph shows the error in steps per step being measured.
There is still some noise in the error measurement as measuring the
linearity error proved to be rather difficult.
The larger oscillation around step 1250 with amplitude of 10 steps could
be pulling by the clock.  The repeating saw-tooth error has a period of
54 steps and an amplitude of 4 steps. Each TDC step is about 41 ps wide.
Total width of the graph is about 100 ns or about 2400 steps.
The same non-linearity appears on all 6 TDC samples that where measured.
Does this make sense?
Erik.
