[time-nuts] Re: Custom Wenzel OXCO with unusual output

[Azelio Boriani]

The other SMA is an external reference input. I have seen one of them on a
Miteq satellite upconverter.

On Sun, Apr 6, 2025 at 6:31 PM Walt via time-nuts <time-nuts at lists.febo.com>
wrote:

> I picked up a custom Wenzel 500-13248B quartz oscillator and upon measuring
> it, I'm not sure if it is working as designed or what.
>
> The RF Out is a raggedy 10MHz sine wave at 4.4Vpp, and a spectrum analyzer
> shows peaks at 10, 20, 30, 40, 50, 60 and 70 MHz.  There may be more but
> I'm
> not sure how to acquire them.
>
> There is nothing coming out of the second unmarked SMA.
>
> Assuming this is not broken, what kind of oscillator is this, and what
> would
> it be used for?
> _______________________________________________
> time-nuts mailing list -- time-nuts at lists.febo.com
> To unsubscribe send an email to time-nuts-leave at lists.febo.com
-------------- next part --------------
A non-text attachment was scrubbed...

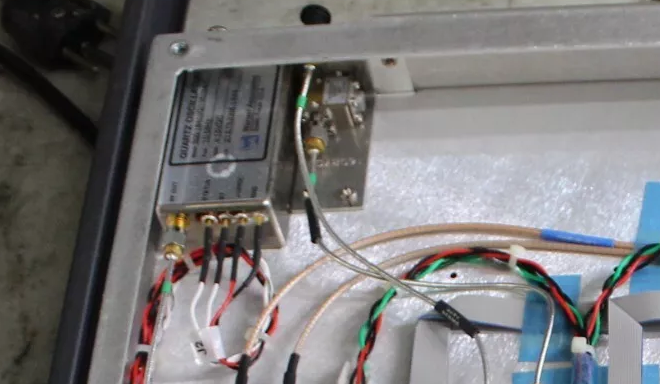

Name: MiteqOCXO.png
