[time-nuts] Looking for FTS1000B OCXO schematics or scrap unit to buy for reverse engineering

[zfe at gmx.net]

Hi,
in my effort to understand the FTS 1050A in detail, I am somehow stuck

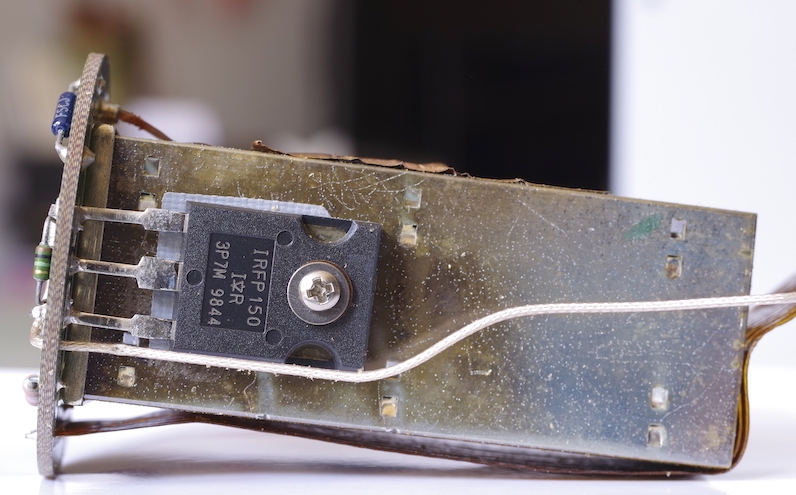

at the part of the 1000B OCXO that is in the dewar (see attachment).
Mine will not come apart without using force, which I want to avoid with
a decent working unit.
Other than the unlikely case that someone has the schematics of that
part, I would be interested to buy a FTS1000B without missing parts that
is not working (to keep the costs reasonable, from Europe would be
ideal) for reverse engineer the schematic. The part of it in the
attachment would be enough.
I will share the results here.
Yves
-------------- next part --------------
A non-text attachment was scrubbed...
Name: FTS_1000B_inner_part.jpeg
Type: image/jpeg
Size: 319187 bytes
Desc: not available
URL: <http://febo.com/pipermail/time-nuts_lists.febo.com/attachments/20250719/14324e9a/attachment.jpeg>
