[time-nuts] retry: PRS10 has spurious frequencies

[SAIDJACK at aol.com]

In a message dated 4/23/2007 10:51:38 Pacific Daylight Time,
henk at deriesp.demon.nl writes:

>Your  picture's input level is 5dBm.
>The SRS spec for PRS10 is 7dBm output.  Were is the difference?

>Did you measure wideband spectrum of the  PRS10 output? Up to 1GHz?




retry: the attachement was too big first time I tried sending this:

Hi Henk,

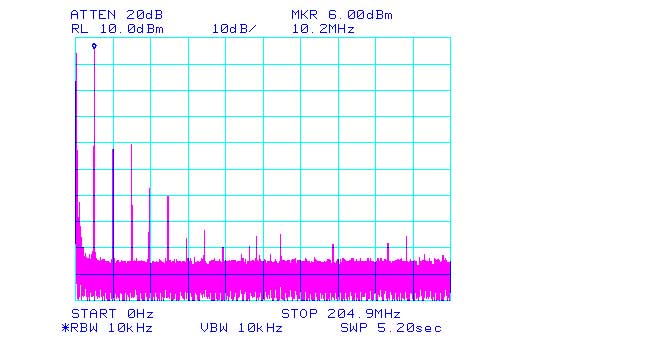

I measured my PRS-10 tonight on an 8563E, you can see the output is  +6dBm.

There are a bunch of spurs up to 200MHz, nothing noteworthy above that,  I
checked to 1GHz. See the attachement. Some of these spurs don't look like  they
are harmonics, but it would take time to investigate all spurs.

Hope this helps you,
bye,
Said






************************************** See what's free at http://www.aol.com.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: prs10.jpg
Type: image/jpeg
Size: 44200 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20070424/8c6ed3f8/attachment-0001.jpg
