[time-nuts] HP5065A A7 series 960 for sale

[cdelect at juno.com]

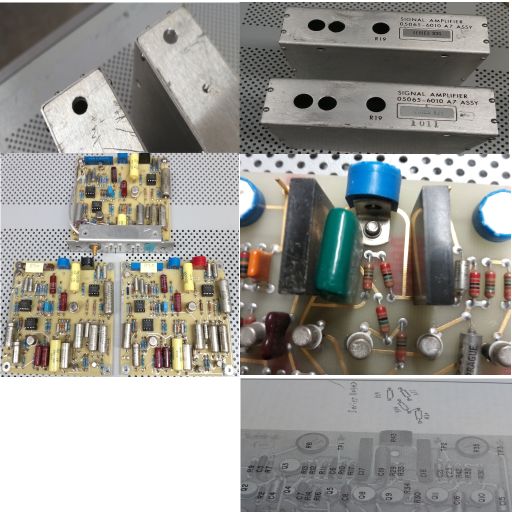

Hi,  When I get a pre-series 960 5065A in I always replace the -6010 A7 module with the newer -6080 unit. Recently while refurbishing an older unit I realized I was getting close to running out of -6080 spares. I had a quantity of the -6010 that had been removed so I went ahead and got a board made with nine of the -6080 on it. Have finished up converting all the -6010 to -6080  I have a few fully populated and tested boards that I will be selling. In the PIX you can see the new holes drilled in the -6010 cases, the 3 units I am selling (one has the frame but I did not have another cover.), and the info on moving two resistors on the A8 board. If you don't reconfigure the resistors then you might not be able to do the phasing alignment.The boards are also labeled with the measured fundamental filter frequency. You should adjust the pot on the A8 to set it to the corresponding value. This also greatly helps when doing the phasing. Price is $106.00 US and that includes the USPS shipping. First taker can have the one with the frame if they want. Paypal or check. Cheers, Corby
-------------- next part --------------
A non-text attachment was scrubbed...
Name: A8stuff.jpg
Type: image/jpeg
Size: 56597 bytes
Desc: not available
URL: <http://febo.com/pipermail/time-nuts_lists.febo.com/attachments/20240924/47bbeb0d/attachment.jpg>
